Clutch pedal, removing and installing: Installing

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.

The clutch pedal is installed in reverse order of removal. Note the following:

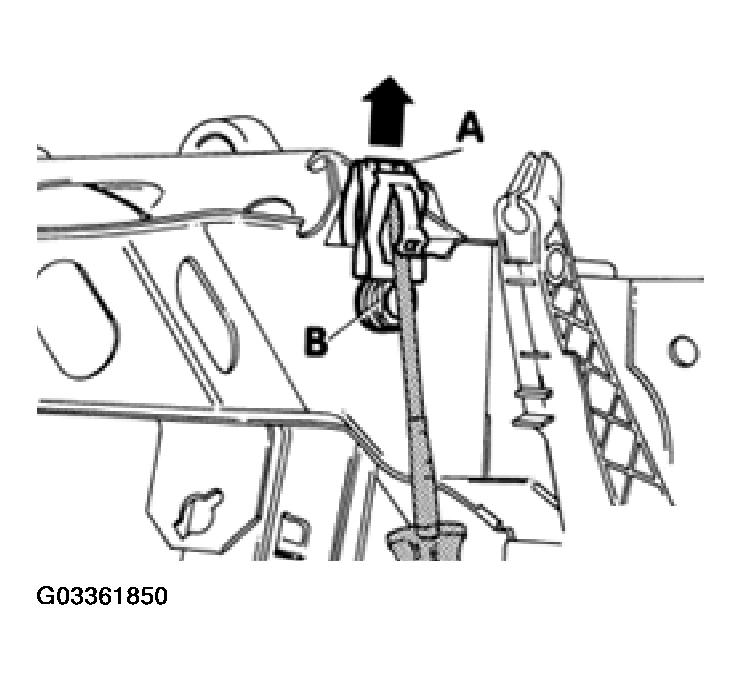

Before installing brake pedal side retaining clip, position pin so that flats -B- are vertical (Figure in CLUTCH PEDAL, REMOVING AND INSTALLING ).
After installing clutch pedal, check operation of clutch cable adjusting mechanism, see CLUTCH CABLE ADJUSTING MECHANISM, CHECKING FUNCTION AND REPAIRING .
