Vehicles with 1.8 or 1.9 liter engine

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.

Place VW 547 clutch pilot disc in position and tighten flywheel mounting bolts.
- Tighten bolts evenly in an alternating diagonal pattern.
- Install VW 558 retainer (as during removal) to tighten flywheel bolts.
- Tightening torque: 20 N.m (15 ft lb)

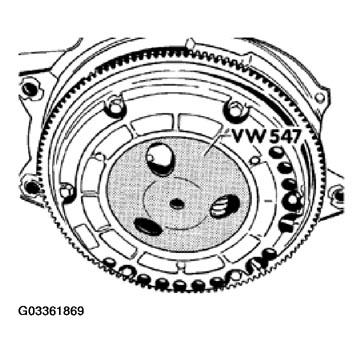

Fig 1: Placing Clutch Pilot Disc In Position And Tightening Flywheel Mounting Bolts

Courtesy of VOLKSWAGEN OF AMERICA, INC.
