Clutch, removing and installing: Removing

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.

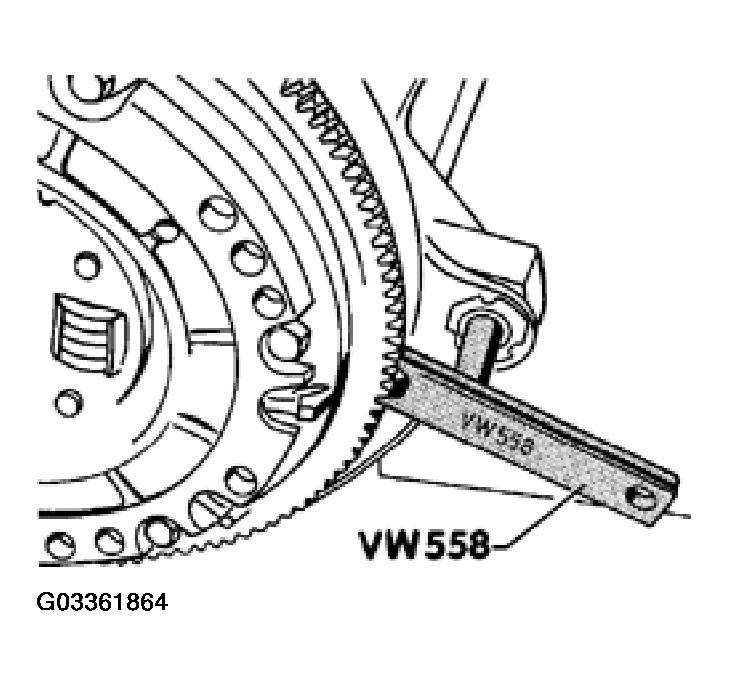

Hold flywheel in place using VW 558 retainer.

Fig 1: Holding Flywheel Using VW 558 Retainer
Courtesy of VOLKSWAGEN OF AMERICA, INC.
Loosen bolts and remove flywheel.
Remove clutch disc.

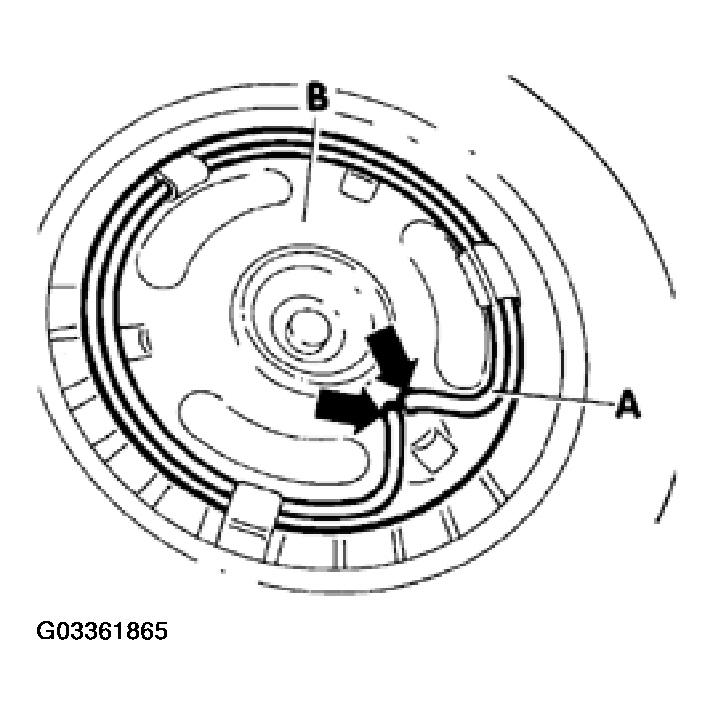

Use screwdriver to free ends of snap ring -A- from bores (arrows) and remove.
Remove release plate -B-.

Fig 2: Removing Release Plate
Courtesy of VOLKSWAGEN OF AMERICA, INC.

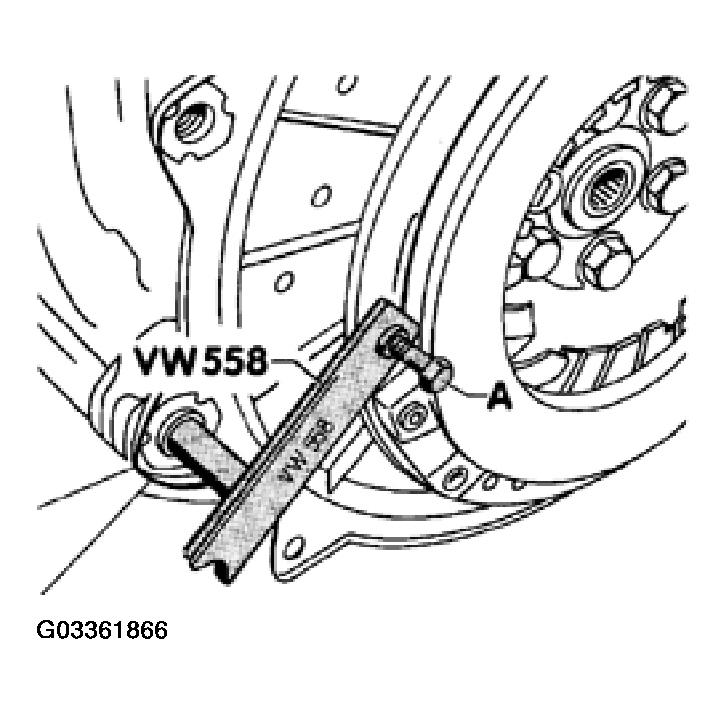

Hold pressure plate in place using VW 558 retainer and bolt -A-.

Fig 3: Holding Pressure Plate
Courtesy of VOLKSWAGEN OF AMERICA, INC.
Remove pressure plate and intermediate plate.
