Clutch, removing and installing: Installing

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.

Position pressure plate and intermediate plate.

Installation position of intermediate plate: protrusion (arrow) points away from pressure plate

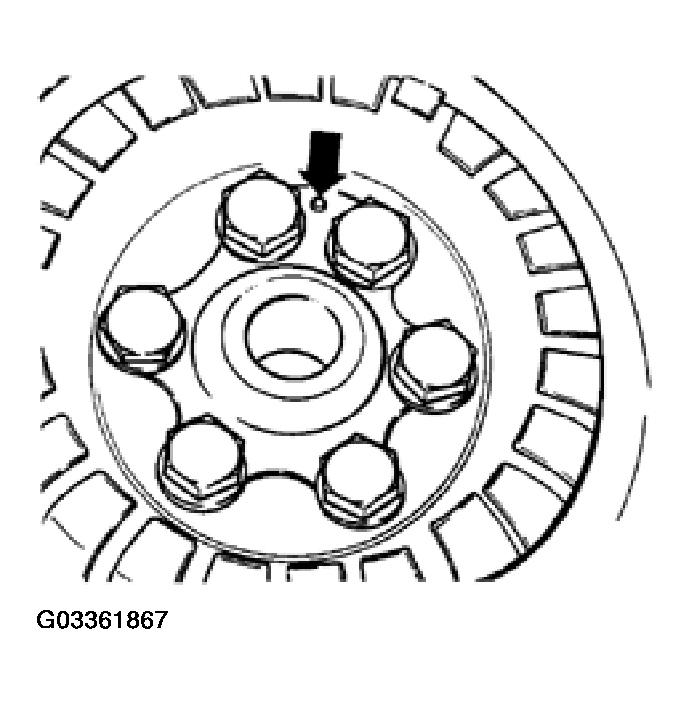

Fig 1: Identifying Installation Position Of Intermediate Plate

Courtesy of VOLKSWAGEN OF AMERICA, INC.

Install new attachment bolts.
Hold pressure plate in position using VW 558 retainer (as during removal) and tighten attachment bolts.

Tightening torque of attachment bolts, see appropriate Engine Mechanical article.

Position release plate -B- and attach to pressure plate with snap ring -A-. Lock both ends of snap ring into bores in pressure plate (arrows).

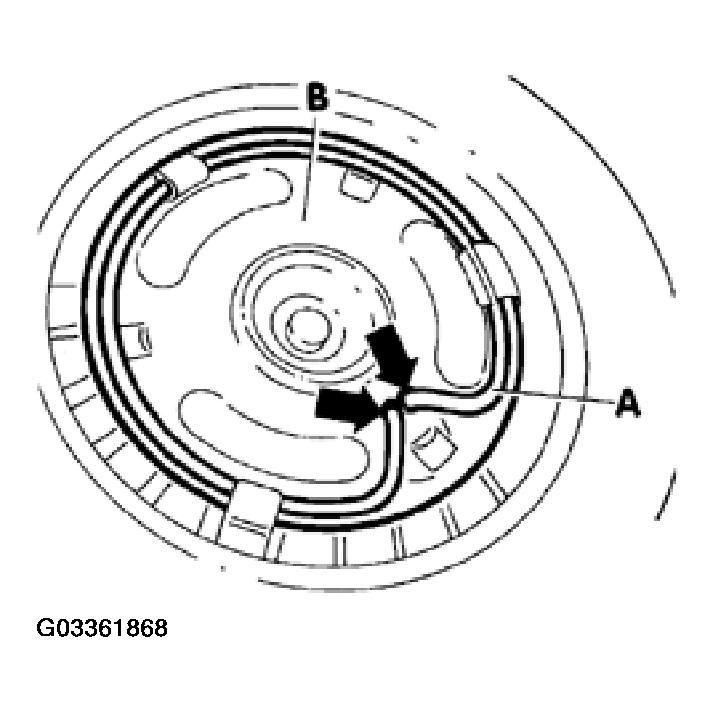

Fig 2: Positioning Release Plate And Attaching To Pressure Plate With Snap Ring
Courtesy of VOLKSWAGEN OF AMERICA, INC.
Coat splines at center of clutch disc with thin layer of G 000 100 grease.
Move clutch disc back and forth along input shaft of transmission until disc hub moves on shaft with no resistance.

CAUTION: Always remove any excess grease.

Mount flywheel to clutch and pressure plate.
