Clutch pressure plate versions

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.

Up to December 1992:

Two recesses mate with flywheel alignment dowel pins to center flywheel

From December 1992:

One recess (arrow -1-) mates with one flywheel alignment dowel pin. See Fig 1.
Circular shoulders (arrows -2-) center flywheel.

CAUTION: The later style clutch pressure plate can only be installed together with the later style flywheel.

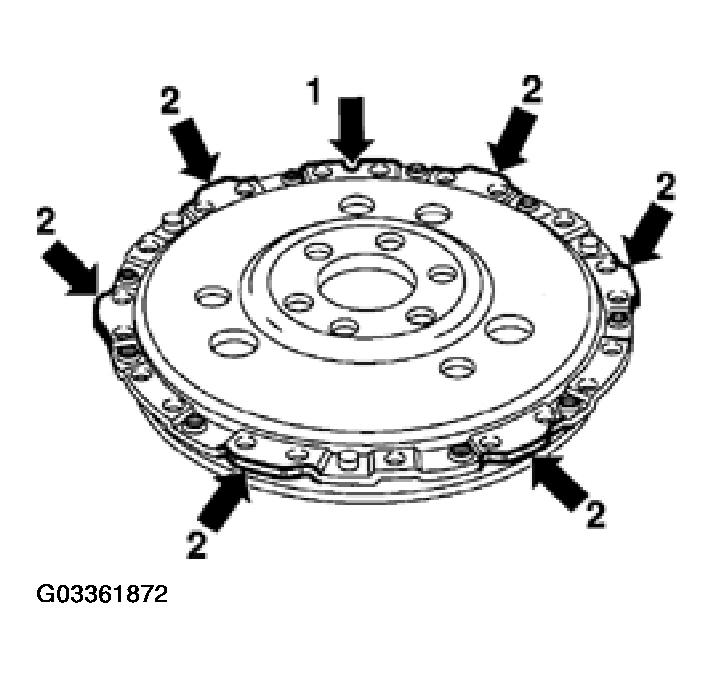

Fig 1: Identifying Clutch Pressure Plate (From December 1992)

Courtesy of VOLKSWAGEN OF AMERICA, INC.
