Clutch control, servicing: Notes
WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Before replacing the clutch cable, check operation, see CLUTCH CABLE ADJUSTING MECHANISM, CHECKING FUNCTION AND REPAIRING .

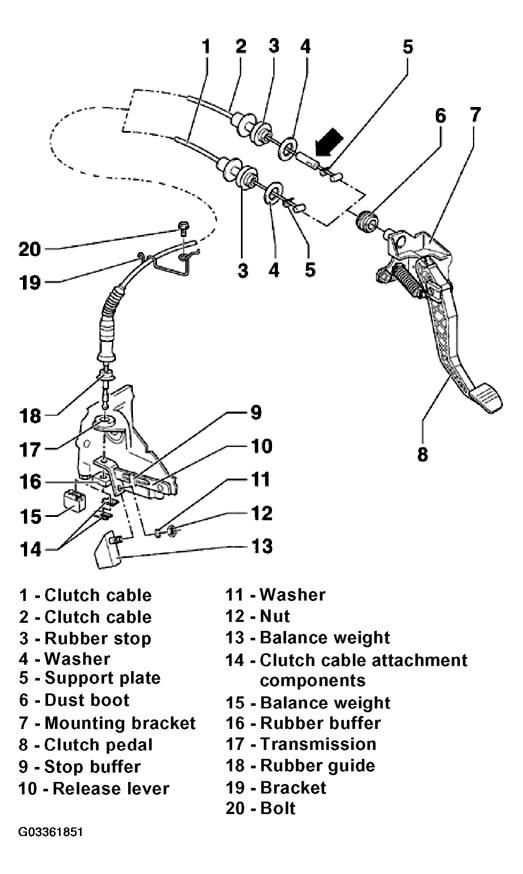

The following list pertains to Fig 1.
- Clutch cable
- Removing and installing, see CLUTCH CABLE, REMOVING AND INSTALLING
- - Clutch cable
- With integral vibration damper (arrow)
- Removing and installing, see CLUTCH CABLE, REMOVING AND INSTALLING
- Rubber stop
- Washer
- Support plate
- For clutch cable, in clutch pedal
- Dust boot
- Mounting bracket
- Removing and installing, see OVER-CENTER SPRING, REMOVING AND INSTALLING
- Clutch pedal
- Removing and installing, see CLUTCH PEDAL, REMOVING AND INSTALLING
- Stop buffer
- Release lever
- Washer
- Nut
- 25 N.m (18 ft lb)
- Balance weight
- Replaces balance weight -15- from August 1993, for vehicles with diesel or turbo diesel engine
NOTE: The balance weight can be installed in all previous vehicles together with a clutch cable (item -2-) in case of a complaint. - Clutch cable attachment components
- Not used when balance weight -15- is installed
- Balance weight
- With integral clutch cable attachment components
- Installed in combination with clutch cable -2-
- Replaced by balance weight -13- from August 1993, for vehicles with diesel or turbo diesel engine
- Rubber buffer
- Transmission
- Rubber guide
- Bracket
- Bolt
- Bracket to body
