Clutch cable, removing and installing: Removing

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Do not kink the clutch cable, otherwise the adjusting mechanism may not function properly.

Depress clutch pedal down to stop at least 5 times.
Attach retaining strap so that eyelet (arrow -1-) is above protective boot.

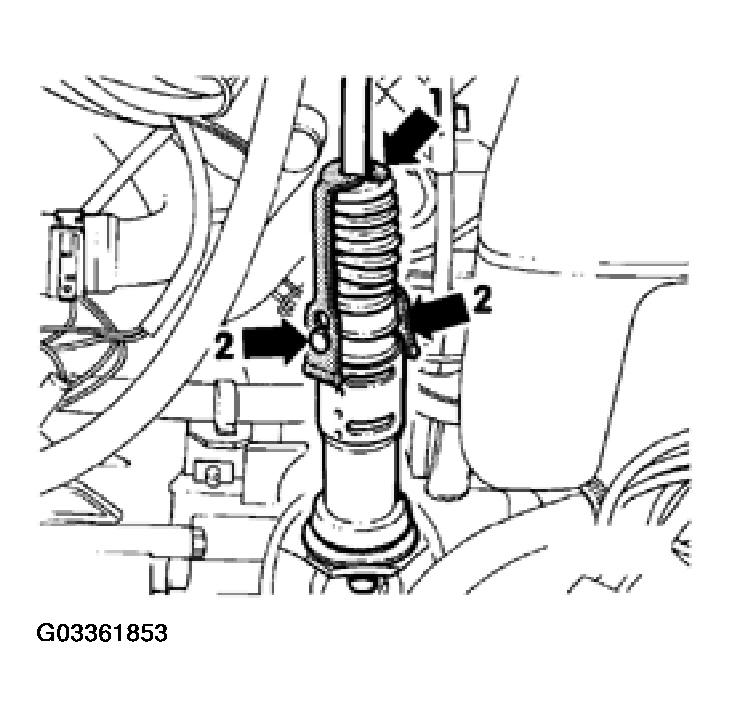

Fig 1: Attaching Clutch Cable Retaining Strap
Courtesy of VOLKSWAGEN OF AMERICA, INC.
Compress adjusting mechanism in area of protective boot.

NOTE: If the adjusting mechanism cannot be compressed, it is faulty. Checking function of clutch cable, see CLUTCH CABLE ADJUSTING MECHANISM, CHECKING FUNCTION AND REPAIRING .

Hook tabs of retaining strap onto pins (arrow -2-) of adjusting mechanism (second technician required).
Disconnect clutch cable attachment components from release shaft lever.
Remove over-center spring, see OVER-CENTER SPRING, REMOVING AND INSTALLING .
Disconnect clutch cable from clutch pedal and remove cable.

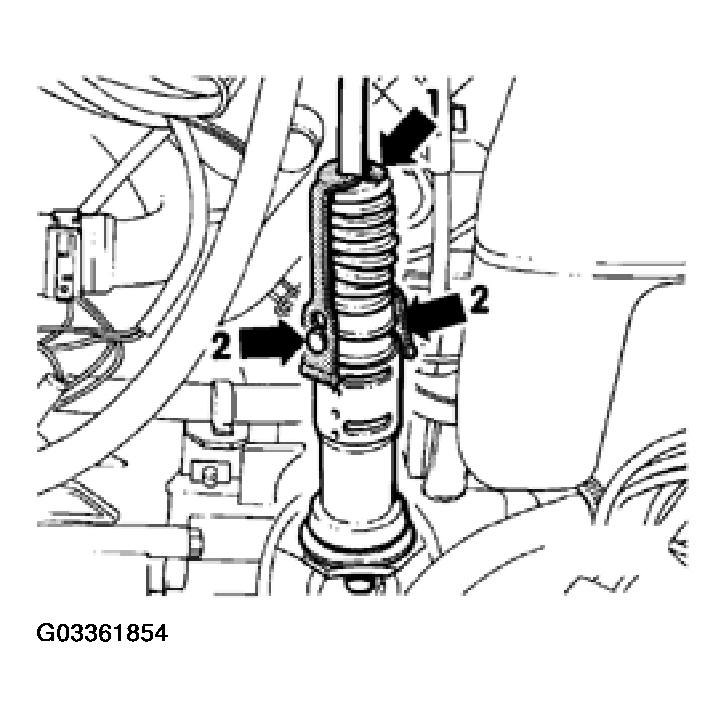

Fig 2: Disconnecting Clutch Cable Attachment Components From Release Shaft Lever
Courtesy of VOLKSWAGEN OF AMERICA, INC.
