Clutch cable adjusting mechanism, checking function and repairing: Repairing
WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.
If the clutch release lever cannot be moved in the return direction, even after the clutch pedal has been operated several times, it is possible that the mechanism has been damaged by mishandling (e.g. pulling on the cable casing).
A malfunctioning adjusting mechanism will cause improper adjustment leading to clutch slippage and premature clutch wear.
NOTE:
- Replacement of the cable is to be avoided.
- The clutch adjusting mechanism can be made to be operational again as described in the procedure that follows.

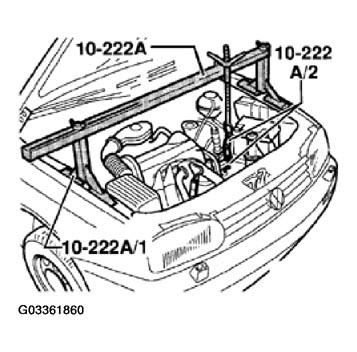

- Mount engine support bar 10-222A using adapter hooks 10-222 A/2.
- Depress clutch pedal and hold (second technician required).
Clutch release lever on transmission is now in operating position

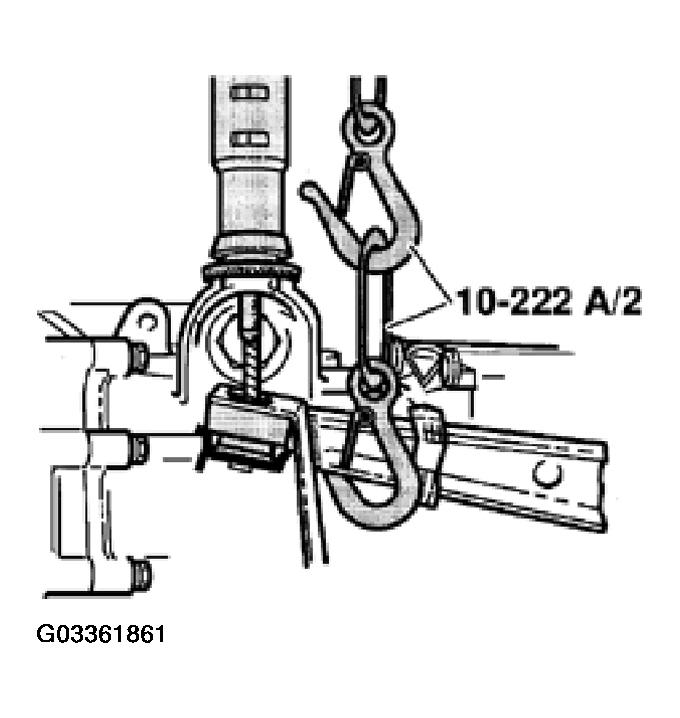

- Lock release lever in position as shown using adapter hooks 10-222 A/2.
- Pull clutch pedal back up to clutch-released position.

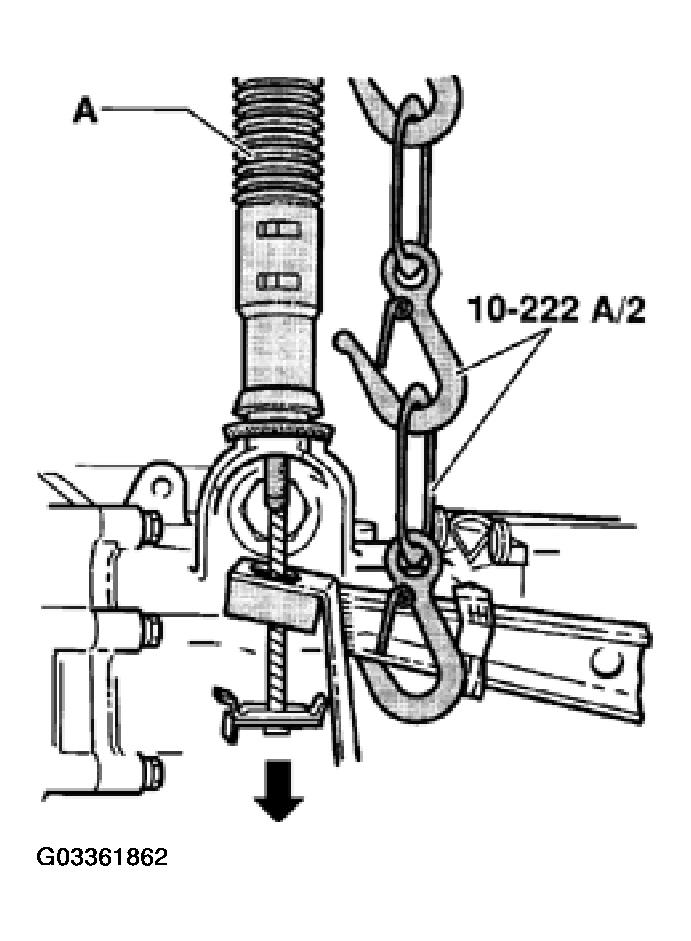

- Pull clutch cable down (in direction of arrow) until adjusting mechanism can be compressed in area of dust boot -A-.
- Return clutch release lever to clutch-released position.
- Repeat functional check.
- Remove engine support bar 10-222 A and adapter hooks.
