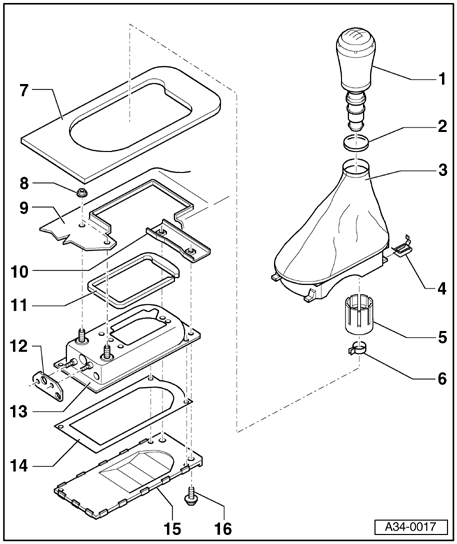

Gear lever housing, servicing: Notes

1 - Gear shift knob

• Screw on and off together with boot

2 - Boot collar

3 - Boot with frame

• Remove and install together with gear shift knob
• Separating from gear shift knob. See Separating cover from gear shift knob and assembling to gear shift knob
• Connect to gear shift knob before installing. See Separating cover from gear shift knob and assembling to gear shift knob

4 - Clip

5 - Bushing

6 - Clamp

• To secure gear shift knob on gear lever

7 - Cover

8 - Hex nut, 25 Nm

9 - Floor plate

10 - Retainer

• For gear lever housing

11 - Gasket

• Between selector housing and floor
• Self-adhesive
• Bond to gear lever housing

12 - Gasket

• Between selector cables and gear lever housing

13 - Selector housing

14 - Gasket

• Self-adhesive
• Bond underneath gear lever housing

15 - Cover plate

16 - Hex combi bolt, 25 Nm
