Cover for Haldex clutch / disc housing, removing and installing: Notes

Special tools, testers and auxiliary items required

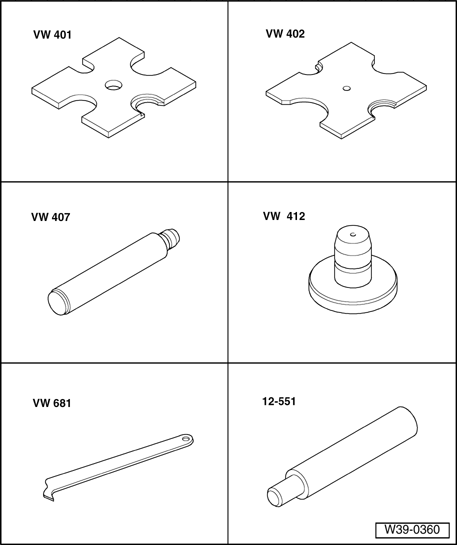

Fig 1: Identifying Special Tools - Cover For Haldex Clutch / Disc Housing, Removing And Installing (1 Of 2)

Courtesy of VOLKSWAGEN UNITED STATES, INC.

• Pressure plate VW 401
• Pressure plate VW 402
• Punch VW 407
• Punch VW 412

• Extractor lever VW 681
• Centering mandrel V.A.G 12-551

Special tools, testers and auxiliary items required

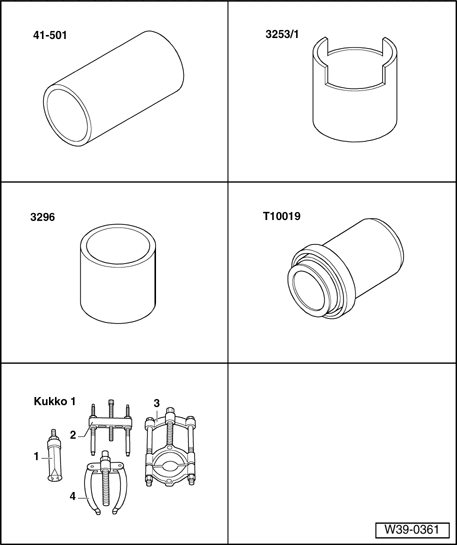

Fig 2: Identifying Special Tools - Cover For Haldex Clutch / Disc Housing, Removing And Installing (2 Of 2)

Courtesy of VOLKSWAGEN UNITED STATES, INC.

• Drive bushing V.A.G 41-501
• Tube 3253/1
• Line VAS 3296
• Thrust piece T10019

• Internal puller 1- Kukko 21/2
• Support 4- Kukko 22/1

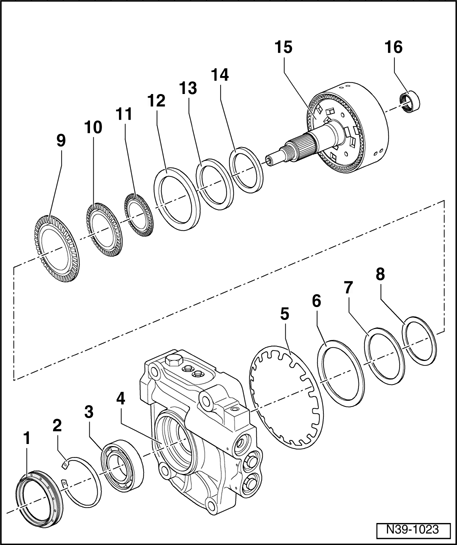

Fig 3: Exploded View Of Cover For Haldex Clutch / Disc Housing Components

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Seal

• For driveshaft flange
• Replace → Sealing ring for driveshaft flange on rear final drive, replacing (final drive removed)

2 - Circlip

3 - Grooved ball bearing

• Pressing out: Pressing off grooved ball bearing from cover for Haldex clutch
• Pressing in: Pressing grooved ball bearing into cover for Haldex clutch

4 - Cover for Haldex clutch

• Allocate via Electronic Parts Catalog (ETKA)

5 - Dished washer

• Note varying thickness
• Allocate via Electronic Parts Catalog (ETKA)

6 - Disc for axial needle bearing

7 - Disc for axial needle bearing

8 - Disc for axial needle bearing

9 - Axial needle bearing

10 - Axial needle bearing

11 - Axial needle bearing

12 - Thrust washer

13 - Thrust washer

14 - Thrust washer

15 - Disc housing

• Pressing off from cover for Haldex clutch

16 - Needle bearing

• Pulling out: Pulling needle bearing out of disc housing
• Pressing in: Pressing in needle bearing to stop into disc housing
