Flexible disc, removing and installing: Notes

WARNING: This page is about a different car, the 2004 Volkswagen R32. However, it is still accessible from the selected car via links, so may be relevant.

Special tools, testers and auxiliary items required

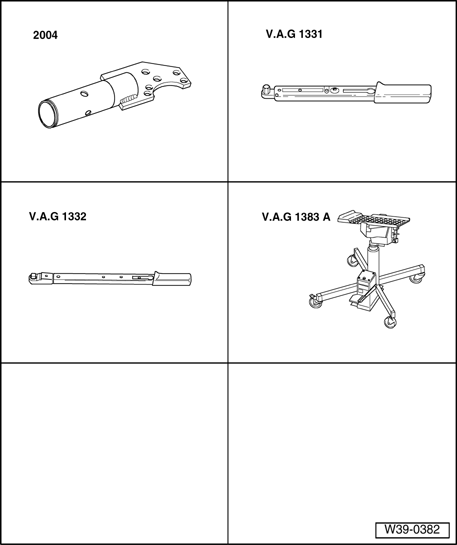

Fig 1: Identifying Special Tools - Flexible Disc, Removing And Installing

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Transmission holder V.A.G 2004
Torque wrench V.A.G 1331
Torque wrench V.A.G 1332
Engine/transmission jack V.A.G 1383/A

Universal transmission support V.A.G 1359/2

Work on the driveshaft should only be performed with the vehicle on a two column hoist.

NOTE:

Mark positions of all parts to each other before removing. Reinstall in identical position otherwise imbalance will be too high which could result in damage to the bearing or in droning noises.
Do not bend driveshaft.
