Disassembly and assembly sequence
WARNING: This page is about a different car, the 2004 Volkswagen R32. However, it is still accessible from the selected car via links, so may be relevant.
Special tools, testers and auxiliary items required

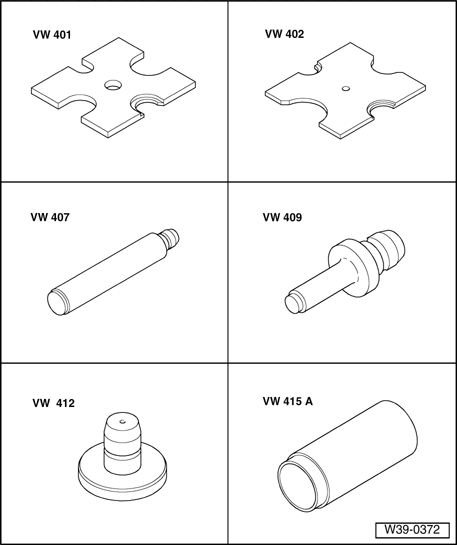

Fig 1: Identifying Special Tools - Bearing For Head Bevel Gear / Input Shaft, Disassembly And Assembly Sequence (1 Of 3)
- Pressure plate VW 401
- Pressure plate VW 402
- Punch VW 407
- Punch VW 409
- Punch VW 412
- Tube VW 415 A
Special tools, testers and auxiliary items required

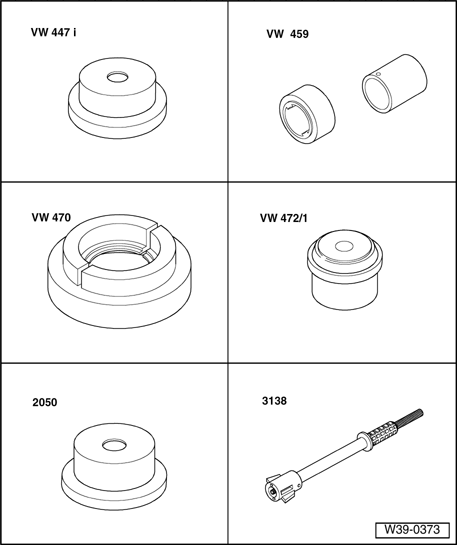

Fig 2: Identifying Special Tools - Bearing For Head Bevel Gear / Input Shaft, Disassembly And Assembly Sequence (2 Of 3)
- Thrust pad VW 447 i
- Press appliance VW 459
- Thrust shell for drive pinion bearing VW 470
- Thrust piece with spacer sleeve VW 472
- Thrust piece VAS 2050
- Drift VAS 3138
Special tools, testers and auxiliary items required

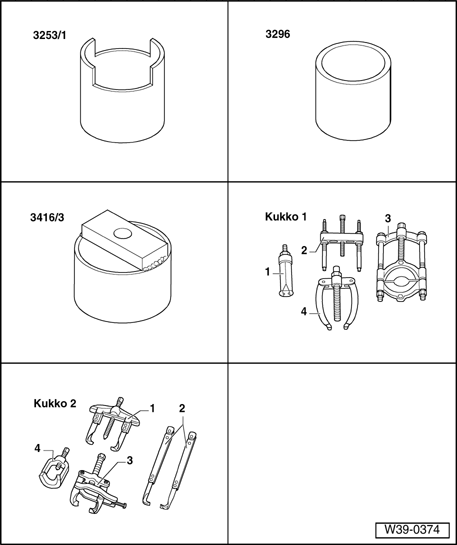

Fig 3: Identifying Special Tools - Bearing For Head Bevel Gear / Input Shaft, Disassembly And Assembly Sequence (3 Of 3)
- Assembly tool VAS 3253
- Line VAS 3296
- Support tube VAS 3416/3
- Separating device 3 - Kukko 17/2
- Two arm puller 1 - Kukko 20/10 with
- Hook Matra V/170
