Transmission, removing and installing (vehicles with 6-cylinder engine): Notes

WARNING: This page is about a different car, the 2004 Volkswagen R32. However, it is still accessible from the selected car via links, so may be relevant.

Special tools, testers and auxiliary items required

Fig 1: Identifying Special Tools -- Transmission, Removing And Installing (Vehicles With 6-Cylinder Engine) (1 Of 2)

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Engine support bridge V.A.G 10-222A
Bracket for engine V.A.G 10-222A/1
Additional hooks (2) V.A.G 10-222A/2
Adapter V.A.G 10-222A/3

Hose clamps up to 25 mm diameter VAS 3094
Engine support adapter VAS 3282

Special tools, testers and auxiliary items required

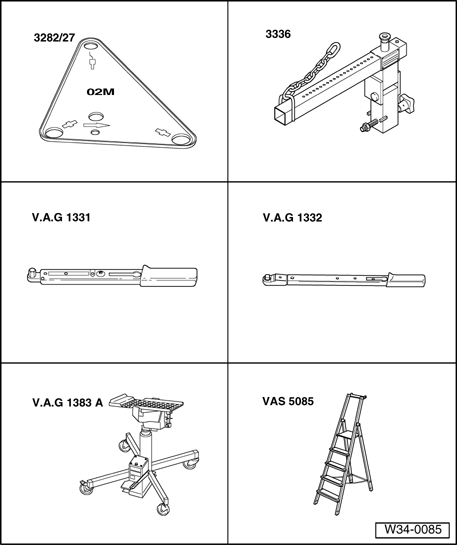

Fig 2: Identifying Special Tools -- Transmission, Removing And Installing (Vehicles With 6-Cylinder Engine) (2 Of 2)

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Adjustment plate VAS 3282/27
Pin VAS 3282/48
Support VAS 3282/52
Transmission support jig VAS 3336

Torque wrench V.A.G 1331/
Torque wrench V.A.G 1332/
Engine/transmission jack V.A.G 1383/A with universal mount V.A.G 1359/2
Step ladder VAS 5085

Special tools, testers and auxiliary items required

Fig 3: Identifying Assembly Tool VAS 5024

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Pliers for spring clamps VAS 5024/A
