Installed position of components at transmission

WARNING: This page is about a different car, the 2004 Volkswagen R32. However, it is still accessible from the selected car via links, so may be relevant.

- Arrow A - Gear change cable

- Arrow B - Gate change cable

Fig 1: Identifying Gear Selector Mechanism Components

Courtesy of VOLKSWAGEN UNITED STATES, INC.

A - Cable for gearshift motion

B - Cable for gate selector motion

C - Heat shield

Remove before removing shift mechanism.

1 - Transmission shift lever

2 - Actuator lever

NOTE:

For vehicles equipped with coded anti-theft radio, note code.
For work on shift mechanism in engine compartment, disconnect battery Ground (GND) strap.
→ 27 BATTERY, STARTER, GENERATOR, CRUISE CONTROL
If battery is re-connected, please note procedures after re-connecting battery → 27 BATTERY, STARTER, GENERATOR, CRUISE CONTROL .
For work on shift mechanism in engine compartment, remove air filter housing → 24 - MULTIPORT FUEL INJECTION (MFI) .
To replace operating cables, remove shift mechanism → Selector mechanism, removing and installing .
Do not bend operating cables.

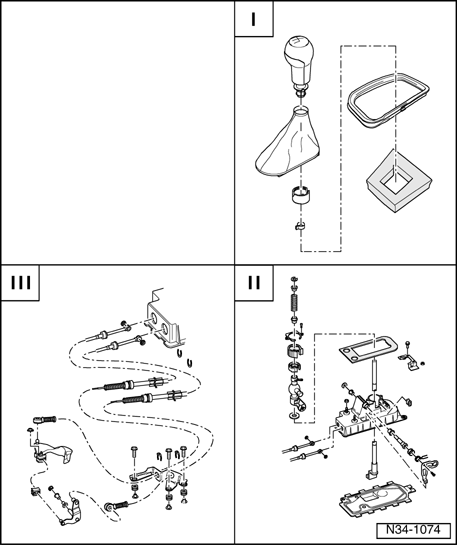

Fig 2: Identifying Transmission Components - Parts I, II & III

Courtesy of VOLKSWAGEN UNITED STATES, INC.

I - Shift knob and cover, removing and installing → Shift knob and cover, removing and installing

II - Shift lever and shift mechanism housing, servicing → Shift lever and shift mechanism housing, servicing

III - Operating cables - assembly overview → Operating cables, assembly overview

Shift mechanism, removing and installing → Selector mechanism, removing and installing

Shift mechanism, adjusting → Shift mechanism, adjusting in transmissions with lock bolts (up to transmission manufacture date 180503)

Special tools, testers and auxiliary items required

Fig 3: Special Tool - Torque Wrench V.A.G 1331

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Torque wrench V.A.G 1331

Fig 4: VAG 1275 Pliers

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Hose clamp pliers V.A.G 1275
