Electrical test of Haldex clutch: Notes

WARNING: This page is about a different car, the 2004 Volkswagen R32. However, it is still accessible from the selected car via links, so may be relevant.

Special tools, testers and auxiliary items required

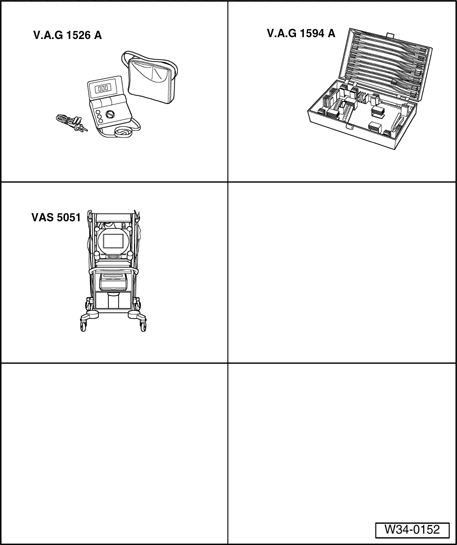

Fig 1: Identifying Special Tools - Electrical Test Of Haldex Clutch

GW00001775

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Multimeter V.A.G 1526/A
Vehicle Diagnostic, Test and Information System VAS 5051
Diagnostic cable, 3m with power supply VAS 5051/1 or Diagnostic cable, 5m without power supply VAS 5051/3
Connector test set V.A.G 1594/C

NOTE:

Test steps apply only to vehicles up to 04.99 which are not capable of diagnostic, control module overview.
