Checking fuel pressure

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2001 Volkswagen Jetta, 2000 Volkswagen Jetta, 2000 Volkswagen Golf, 2000 Volkswagen GTI, and 1999 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.

Special tools, testers and auxiliary items required

High pressure fuel gauge

CAUTION: Fuel supply line is under pressure! Wear protective goggles and protective clothing to prevent injuries and contact with skin. Before loosening hose connections, place rags around the connection point. Then release pressure by carefully pulling on hose.

Fig 1: Identifying Fuel Supply Line

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Remove the fuel supply line - 2 - and catch leaking fuel using a rag.

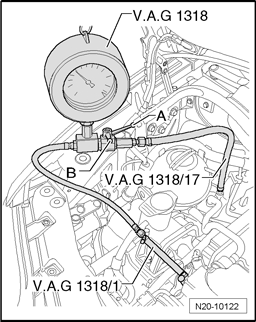

Fig 2: Identifying V.A.G. 1318

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Install a High pressure fuel gauge in place of the fuel supply line.
Open the shut-off valve of the High pressure fuel gauge.
Switch the ignition on and off until the fuel pressure on no longer rises.
Check the indicated fuel pressure on the High pressure fuel gauge.

Specified value: 3.5 to 5.0 bar.

If the fuel pressure is OK, check the residual pressure. Refer to → Checking residual pressure .

If specified value is obtained:

Check the return line between the fuel filter and the fuel pump for kinks and blockage.

If no malfunction is found in the return line between the fuel filter and the fuel pump:

The pressure relief valve in the fuel filter is malfunctioning, replace the fuel filter. For all fuel supply system removal/installation procedures and torque specifications. Refer to 20 FUEL SUPPLY .

If specified value is not obtained:

Check the fuel pressure in front of the fuel filter.

Fig 3: High Pressure Fuel Gauge Connected Between The Fuel Filter And The Fuel Supply Line

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Connect a High pressure fuel gauge between the fuel filter and the fuel supply line.
Open the shut-off valve of the High pressure fuel gauge.
Start the engine and let it run at idle.

CAUTION: Shut-off valve must only be closed slowly. At a fuel pressure of 8 bar, shut-off valve must be opened again immediately to prevent damage to pressure measuring device.

Fig 4: Closing The Shut-Off Valve Of The High Pressure Fuel Gauge

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Slowly close the shut-off valve of the High pressure fuel gauge. Pressure must increase to min. 6.0 bar. If 6 bar is reached, open shut-off valve again immediately!

If the fuel pressure increases:

The pressure relief valve in the fuel filter malfunctioning, replace the fuel filter. For all fuel supply system removal/installation procedures and torque specifications. Refer to 20 FUEL SUPPLY .

If the fuel pressure does not increase:

Replace the fuel pump. For all fuel supply system removal/installation procedures and torque specifications. Refer to 20 FUEL SUPPLY .

Final procedures

After the repair work, the following work steps must be performed in the following sequence:

Check the DTC memory. Refer to.
If necessary, erase the DTC memory. Refer to.
If the DTC memory was erased, generate readiness code. Refer to.

End of procedure
