Cylinder head, removing and installing: Removing
WARNING: This page is about a different car, the 2006 Volkswagen Golf, 2005 Volkswagen Jetta, 2005 Volkswagen Golf, 2004 Volkswagen Jetta, and 2004 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
- Before removing the toothed belt from the camshaft pulley, lock the toothed belt tensioner. Refer to Toothed belts, removing, installing and tensioning .
- Both lifting eyes for the support are located on the cylinder head, so an additional bracket for supporting the engine must be secured on the cylinder block.
- Drain coolant. Refer to Coolant, draining and filling .
- Unbolt exhaust pipe on turbocharger.
- Disconnect connector on Turbocharger (TC) vane position sensor -G500-.
- Remove cylinder head cover. Refer to Cylinder head cover, removing and installing .
- Remove toothed belt from camshaft. Refer to Toothed belts, removing, installing and tensioning .

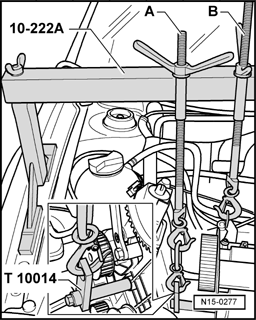

- Install bracket T10014 to cylinder block using tapped hole in vicinity of water pump as shown. Tightening torque: 20 Nm
- Lift engine slightly using spindle - A - until spindle - B - is relieved.
- Remove spindle - B -.
- Before removing cylinder head, extract fuel at tandem pump using hand vacuum pump V.A.G 1390 with bleed receptacle V.A.G 1390/1 , refer to Tandem pump, removing and installing .
- Remove camshaft pulley hub. Refer to Camshaft, removing and installing .
- Pull off/disconnect all other electrical connections/wiring as necessary from cylinder head and lay aside.
- Separate all connections from cylinder head for coolant, vacuum and intake hoses.
NOTE:
- Maintain sequence when loosening and tightening cylinder head bolts.
- Loosen and remove cylinder head bolts in sequence.
- Remove cylinder head.
- Check cylinder head distortion once cylinder head sealing surfaces have been cleaned.
