Ignition keys, matching (adaptation)

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.

Insert old (authorized) ignition key in ignition lock.

Connect VAG 1551 Scan Tool (ST) and select operating mode 1 "Rapid data transfer", switch on ignition and enter address word 25 "Immobilizer".

After displaying control module identification:

Press --> button.

Indicated on display:

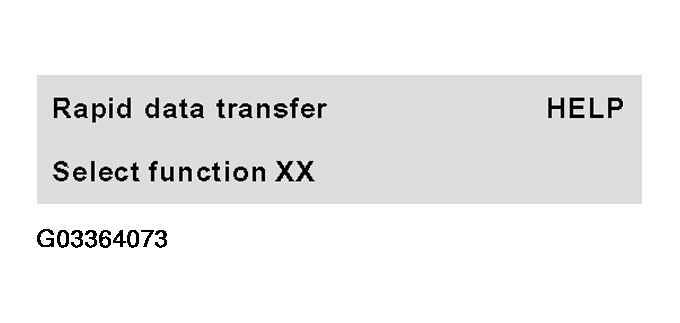

Fig 1: Identifying VAG 1551 Scan Tool Display (Cabrio Up To May 1999 - Ignition Keys, Matching) (Select Function XX)

Courtesy of VOLKSWAGEN OF AMERICA, INC.

Press button -1- twice. (11 selects the "Login procedure" function.)

Indicated on display:

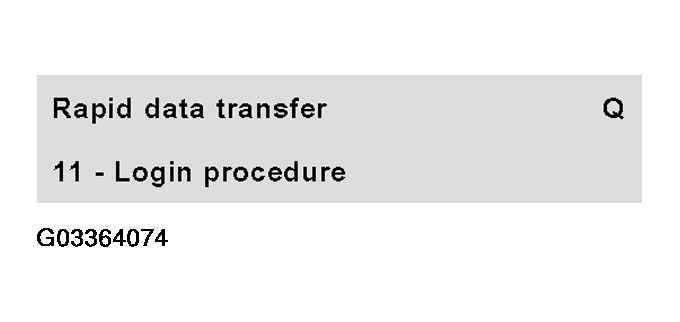

Fig 2: Identifying VAG 1551 Scan Tool Display (Cabrio Up To May 1999 - Ignition Keys, Matching) (11 Login Procedure)

Courtesy of VOLKSWAGEN OF AMERICA, INC.

Confirm entry with -Q- button.

Indicated on display:

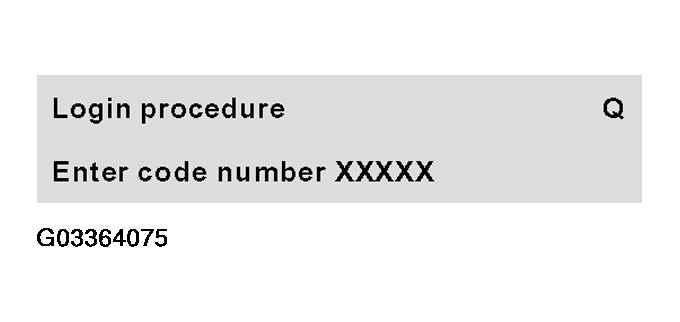

Fig 3: Identifying VAG 1551 Scan Tool Display (Cabrio Up To May 1999 - Ignition Keys, Matching) (Enter Code Number)

Courtesy of VOLKSWAGEN OF AMERICA, INC.

Enter secret number, when doing this place a -0- before 4 digit number (e.g. 01915).

Secret number is located on button fob and is made visible by carefully "scratching off" protective coating (e.g. with a coin).

Confirm entry with -Q- button.

Indicated on display:

Fig 4: Identifying VAG 1551 Scan Tool Display (Cabrio Up To May 1999 - Ignition Keys, Matching) (Select Function XX)

Courtesy of VOLKSWAGEN OF AMERICA, INC.

NOTE:

Will be indicated briefly on display:

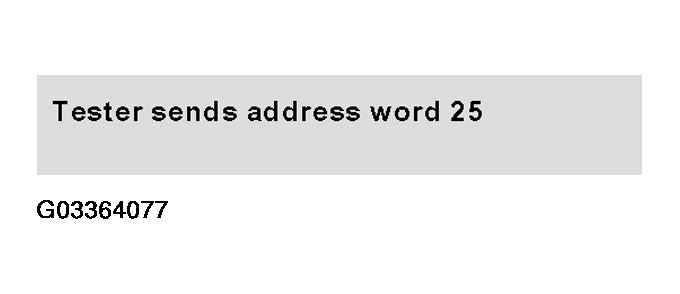

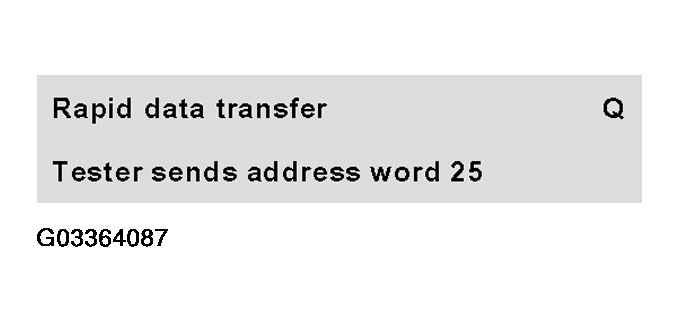

Fig 5: Identifying VAG 1551 Scan Tool Display (Cabrio Up To May 1999 - Ignition Keys, Matching) (Tester Sends Address Word 25)
Courtesy of VOLKSWAGEN OF AMERICA, INC.
Secret number is not accepted. Enter again.
Two attempts to enter secret number are possible immediately, a 3rd attempt is only permitted after a minimum of 35 minutes if the ignition remains switched on during this time and the OBD is exited via the function 06 "End output".

Press buttons -1- and -0-. (10 selects the "Adaptation" function.)

Indicated on display:

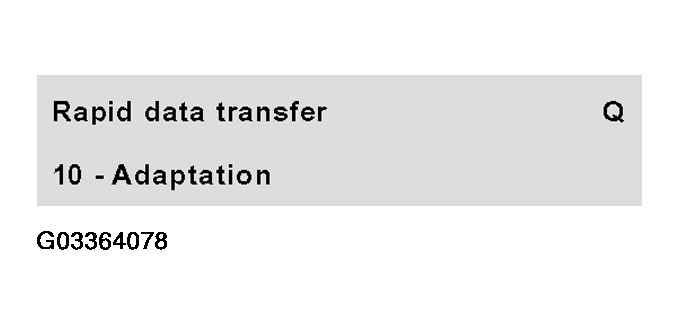

Fig 6: Identifying VAG 1551 Scan Tool Display (Cabrio Up To May 1999 - Ignition Keys, Matching) (10 Adaption)

Courtesy of VOLKSWAGEN OF AMERICA, INC.

Confirm entry with -Q- button.

Indicated on display:

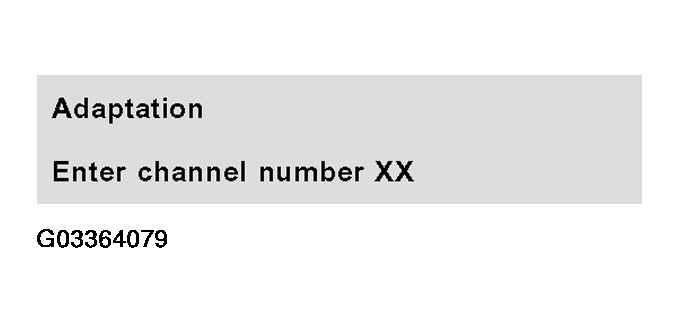

Fig 7: Identifying VAG 1551 Scan Tool Display (Cabrio Up To May 1999 - Ignition Keys, Matching) (Enter Channel Number)

Courtesy of VOLKSWAGEN OF AMERICA, INC.

Press buttons -0- and -1-. ("channel 1" is selected with 01.)
Confirm entry with -Q- button.

If the following display appears:

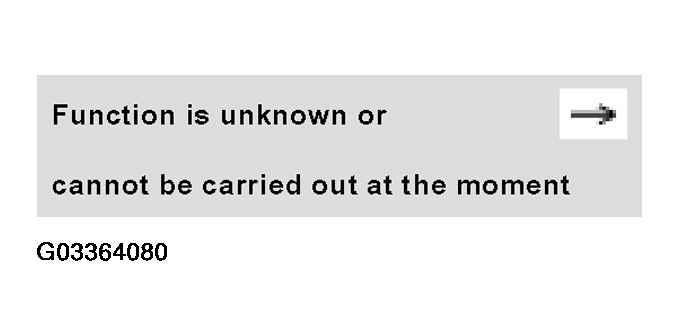

Fig 8: Identifying VAG 1551 Scan Tool Display (Cabrio Up To May 1999 - Ignition Keys, Matching) (Function Is Unknown)

Courtesy of VOLKSWAGEN OF AMERICA, INC.

Repeat adaptation by entering secret number.

Indicated on display:

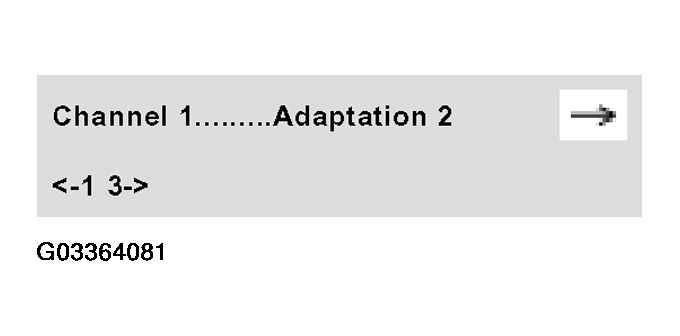

Fig 9: Identifying VAG 1551 Scan Tool Display (Cabrio Up To May 1999 - Ignition Keys, Matching) (Channel 1, Adaption 2)

Courtesy of VOLKSWAGEN OF AMERICA, INC.

Top line of display shows that two ignition keys are matched to system.

Press --> button.

Indicated on display:

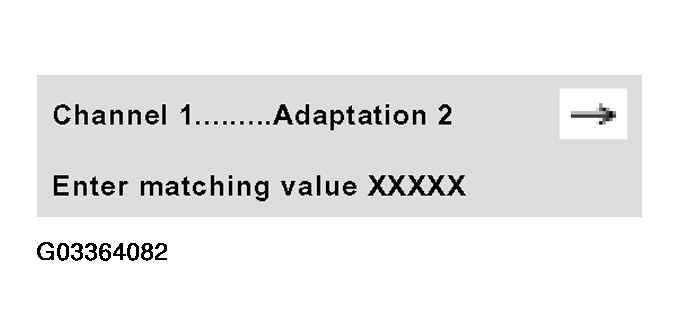

Fig 10: Identifying VAG 1551 Scan Tool Display (Cabrio Up To May 1999 - Ignition Keys, Matching) (Enter Matching Value)

Courtesy of VOLKSWAGEN OF AMERICA, INC.

Press -0- button four times, then enter number of ignition keys to be matched, including existing key, (e.g. 00003); max. Qty. 8.
Confirm entry with -Q- button.

Indicated on display for three ignition keys to be matched:

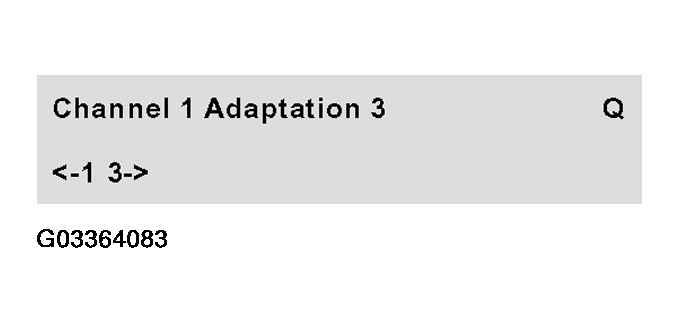

Fig 11: Identifying VAG 1551 Scan Tool Display (Cabrio Up To May 1999 - Ignition Keys, Matching) (Channel 1, Adaption 3)

Courtesy of VOLKSWAGEN OF AMERICA, INC.

Confirm entry with -Q- button.

Indicated on display:

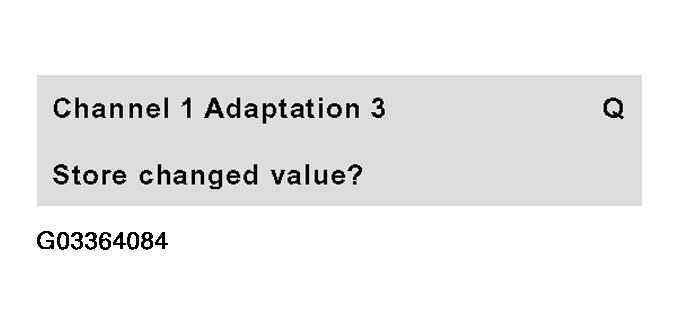

Fig 12: Identifying VAG 1551 Scan Tool Display (Cabrio Up To May 1999 - Ignition Keys, Matching) (Store Changed Value)

Courtesy of VOLKSWAGEN OF AMERICA, INC.

Confirm entry with -Q- button.

Indicated on display:

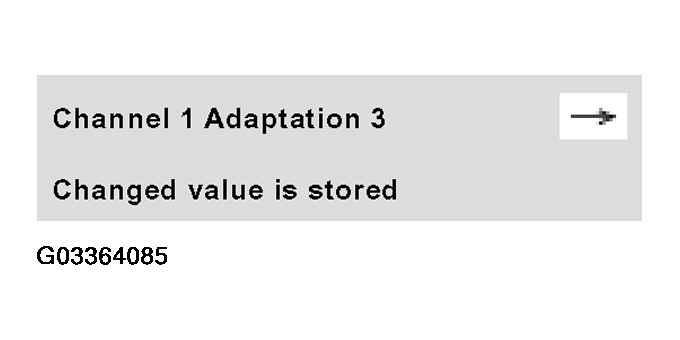

Fig 13: Identifying VAG 1551 Scan Tool Display (Cabrio Up To May 1999 - Ignition Keys, Matching) (Changed Value Is Stored)

Courtesy of VOLKSWAGEN OF AMERICA, INC.

Press --> button.
Press buttons -0- and -6-. (06 selects the "End output" function.)
Confirm entry with -Q- button.

The key in ignition/starter lock is now matched.

Insert next key in ignition lock and switch on for at least 1 second.
Repeat procedure until all keys are matched.

NOTE: 30 seconds must not be exceeded when matching all keys; if ignition is switched off time will not be registered.

Select function 02 "Check DTC memory". If no malfunction is stored, matching keys has been successfully completed.

The following DTC messages are created by matching sequence and can be ignored:

Indicated on display (ignore display):

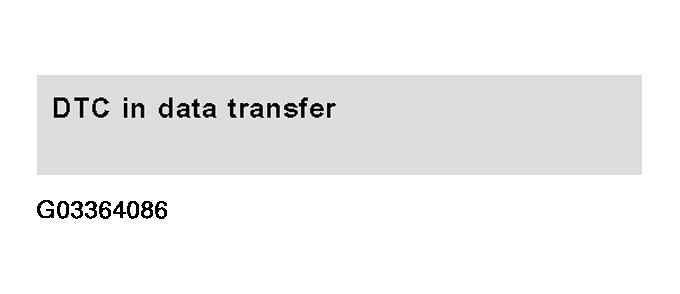

Fig 14: Identifying VAG 1551 Scan Tool Display (Cabrio Up To May 1999 - Ignition Keys, Matching) (DTC In Data Transfer)

Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display (ignore display).

Fig 15: Identifying VAG 1551 Scan Tool Display (Cabrio Up To May 1999 - Ignition Keys, Matching) (Tester Sends Address Word 25)

Courtesy of VOLKSWAGEN OF AMERICA, INC.

Indicated on display (ignore display).

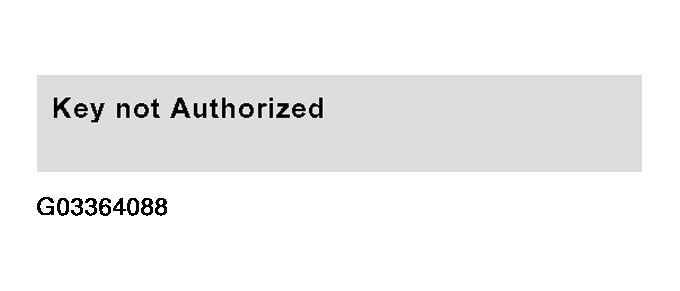

Fig 16: Identifying VAG 1551 Scan Tool Display (Cabrio Up To May 1999 - Ignition Keys, Matching) (Key Not Authorized)

Courtesy of VOLKSWAGEN OF AMERICA, INC.

The DTC, "Key not Authorized", will be indicated during complete matching procedure, because during matching procedure it is not permitted to start engine.

Matching ignition keys is automatically terminated when:

Number of matched keys is reached
A matched key is used to switch on ignition again and ignition remains switched on for longer than 1 second (malfunction is stored)
Matching procedure for each key is not completed within specified period of 30 seconds after switching on ignition (DTC is stored)
If during key matching a malfunction is stored.
