Muffler with mounts for vehicles with all-wheel drive

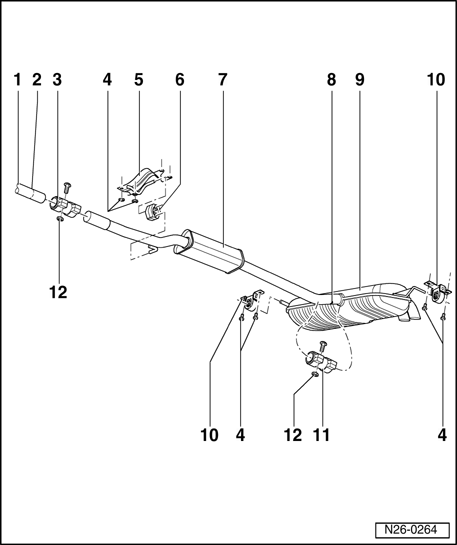

Fig 1: Identifying Muffler Components With Mounts (AWD)

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Front exhaust pipe with catalytic converter

2 - Limit stop

• For double clamps

3 - Double clamp

4 - 25 Nm

5 - Connection support

6 - Retaining ring

• Replace if damaged

7 - Front muffler

8 - Separating point

• For repairs
• Identified on exhaust pipe by an impression
• At factory, front and rear mufflers are installed as a single component. Replacement front and rear mufflers are supplied separately, with replacement double clamp for connecting joint.
• Cut through exhaust pipe with body repair saw V.A.G 1523A at right angles at separating point

9 - Rear muffler

10 - Suspended mount

• With retaining ring

11 - Repair double clamp

12 - 40 Nm
