Front exhaust pipe and catalytic converter with attachments

Front exhaust pipe and catalytic converter with attachments for vehicles with all-wheel drive. Refer to Front exhaust pipe and catalytic converter with attachments for vehicles with all-wheel drive  .

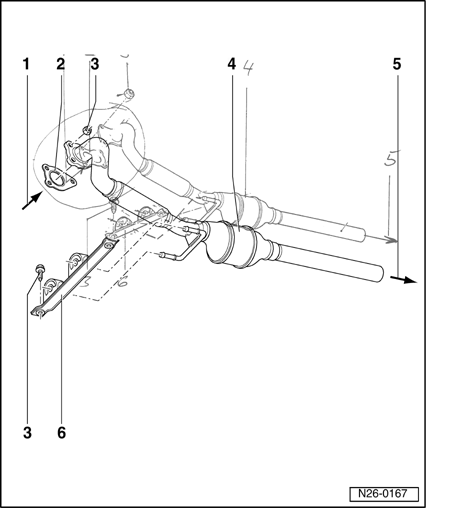

Fig 1: Identifying Front Exhaust Pipe And Catalytic Converter Components

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - From turbocharger

2 - Gasket

• Always replace

3 - 25 Nm

4 - Catalytic converter

5 - To rear muffler

6 - Suspended mount
