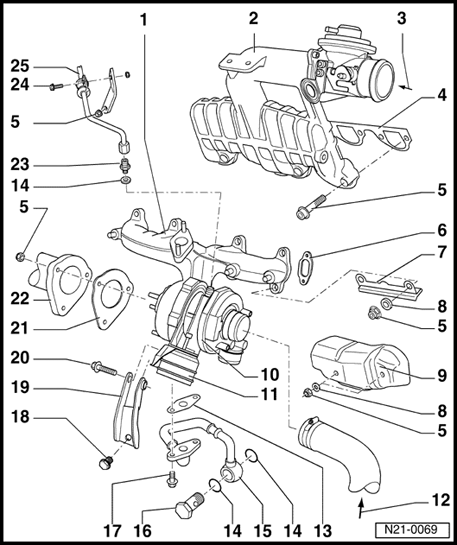

Turbocharger system, assembly overview

1 - Exhaust manifold

• With turbocharger
• Replace as complete unit only

2 - Intake manifold

3 - From charge air cooler

4 - Gasket

• Always replace
• Coating (bead) to intake manifold

5 - 25 Nm

6 - Gasket

• Note installation position

7 - Bracket

8 - Washer

9 - Heat shield

10 - Turbocharger

• Replace as complete unit with exhaust manifold only
• To remove exhaust turbocharger, remove right drive axle at transmission: Refer to 40 FRONT SUSPENSION
• Charge pressure regulation, checking. Refer to Charge pressure regulation, checking

11 - Vacuum diaphragm

• For boost pressure regulation
• Component of the turbocharger cannot be replaced

12 - From air filter

13 - Gasket

• Always replace

14 - Oil-ring

• Always replace

15 - Oil return line

• To cylinder block

16 - Banjo bolt, 40 Nm

17 - 15 Nm

18 - 40 Nm

19 - Bracket

20 - 25 Nm

21 - Gasket

• Replace

22 - Front exhaust pipe

23 - Connecting piece, 30 Nm

• Always replace
• Coat threads and bolt head contact surface with High-temperature lubricant G 052 112 A3
• Fill oil supply line with oil before fastening it to the connection fitting.

24 - 10 Nm

25 - Oil supply line

• Fill oil supply line with oil before fastening it to the connection fitting.
• Removing and installing
