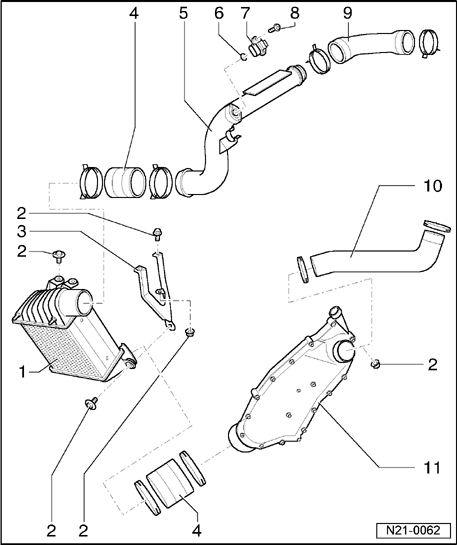

Charge air cooler components, assembly overview
WARNING: This page is about a different variant/trim than selected.
NOTE:
- Charge air system must be properly sealed.
- Various hose connections are secured with clamps. For connector couplings, always note the following points:
- Release connection by pulling retaining clip - arrow -.
- Disconnect hose/pipe without tools.
- When assembling, make sure retaining tabs - A - are engaged securely.
1 - Air charge cooler
2 - 10 Nm
3 - Bracket
4 - Connecting hose
5 - Connecting pipe
- Charge air cooler/intake manifold
6 - O-ring
- Replace if damaged
7 - Intake Air Temperature (IAT) Sensor G72
- 12.98 → on charge air cooler
8 - 5 Nm
9 - Connecting hose
- Connection pipe/intake manifold
10 - Connecting hose
- Charge air pipe/turbocharger
11 - Charge air pipe
- With muffler
