Removing

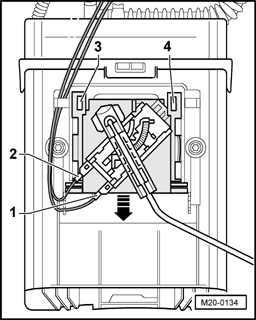

Fig 1: Fuel Gauge Sender Connectors & Retaining Tabs (Engine Code BBW)

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Release and disconnect terminals for wires -1- and -2-.
Lift retaining tabs -3- and -4- with a screwdriver and pull fuel gauge sender out downward in direction of arrow.

Installing

Insert fuel gauge sender in guides on fuel delivery unit and push up until it engages.
Connect terminals for wires -1- (blue) and -2- (black).
Install fuel delivery unit. Refer to Fuel delivery unit, removing and installing .
