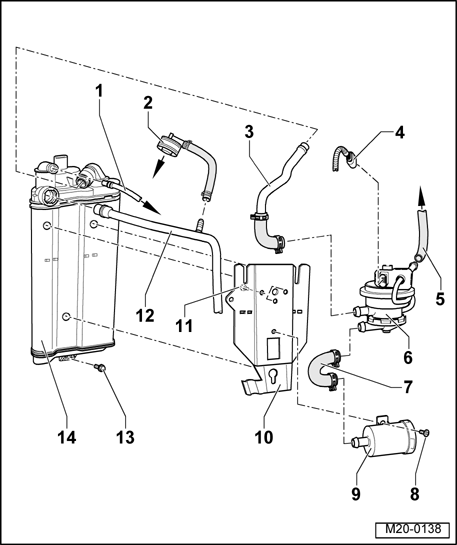

Engine code BBW

1 - Breather pipe

• White
• Check if seated securely
• To unlock press safety ring at EVAP canister together
• To EVAP canister purge regulator valve. Refer to EVAP system, assembly overview  , item -EVAP system, assembly overview

2 - Non-return valve

• Clipped into filler neck
• Must have a passageway in direction of filler neck

3 - Connecting hose

• Pressure side

4 - Connector

• Black, 3-pin

5 - Vacuum line

• To intake manifold. Refer to EVAP system, assembly overview  , item -6-

6 - Leak Detection Pump (LDP) -V144-

• In right rear wheelhousing, behind wheelhousing liner
• Pump will be activated by engine control module (pulsed)

7 - Connecting hose

• Suction side

8 - 3 Nm

9 - Air filter for Leak Detection Pump -V144-

10 - Bracket

• To remove, pull forward in engage area (center) and slide bracket downward

11 - 3 Nm

12 - Breather pipe

• Part of fuel tank
• Check if seated securely
• To unlock press safety ring at EVAP canister together

13 - Evaporative Emissions (EVAP) canister

• In right rear wheelhousing, behind wheelhousing liner
