Engine codes AEG, AVH, AZG, BEV

• Engine code BBW. Refer to Engine code BBW

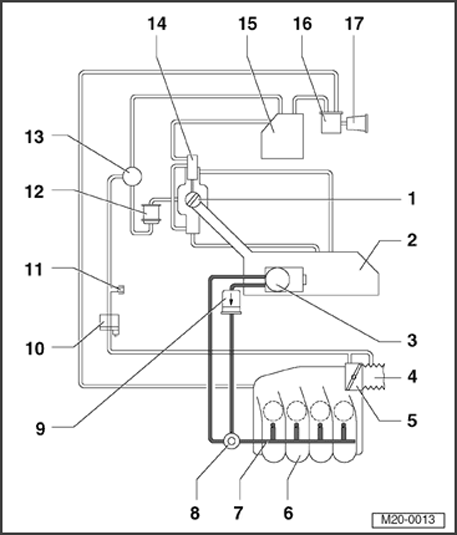

1 - Tank flap unit

2 - Fuel tank

3 - Fuel delivery unit

4 - Intake hose

5 - Throttle valve control module -J338-

6 - Intake manifold

7 - Fuel rail with injectors

8 - Fuel pressure regulator

9 - Fuel filter

• Installed position: Arrow points in direction of flow

10 - Evaporative Emissions (EVAP) canister purge regulator valve -N80-

• Installed position: Arrow points in direction of flow
• Valve will be activated by engine control module (pulsed)

11 - Test connection

12 - Gravity valve

13 - Pressure retention valve

14 - Change-over valve

15 - Evaporative Emissions (EVAP) canister

• In right rear wheelhousing, behind wheelhousing liner

16 - Leak Detection Pump (LDP) -V144-

• In right rear wheelhousing, behind wheelhousing liner
• Pump will be activated by engine control module (pulsed)

17 - Air filter for Leak Detection Pump (LDP) -V144-
