Seals for flanged shafts on rear final drive, replacing: Notes

WARNING: This page is about a different car, the 2004 Volkswagen R32. However, it is still accessible from the selected car via links, so may be relevant.

Special tools, testers and auxiliary items required

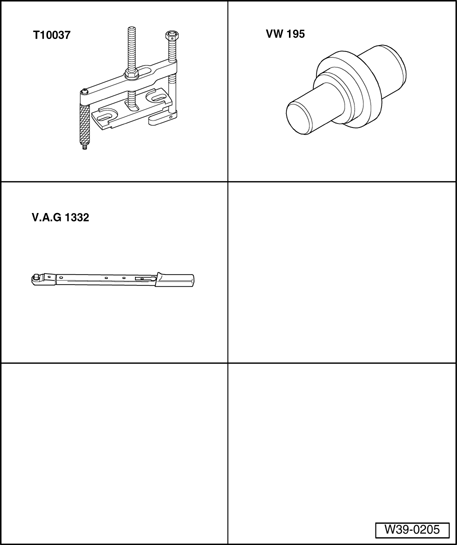

Fig 1: Identifying Special Tools - Seals For Flanged Shafts On Rear Final Drive, Replacing
GW00001969Courtesy of VOLKSWAGEN UNITED STATES, INC.
NOTE:
  • All illustrations show the right side of the final drive. Removing and installing flanged shaft and oil seal on left side is identical.
