Sealing ring for driveshaft flange on rear final drive, replacing (final drive removed): Removing

WARNING: This page is about a different car, the 2004 Volkswagen R32. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Bore Holes In Transmission Holder

Courtesy of VOLKSWAGEN UNITED STATES, INC.

For mounting rear final drive, transmission support VW 353 must be modified on assembly stand.

Dimensional data in mm.

Inscribe bore - arrow 1 - corresponding to illustration.
Bore a hole of 13 mm diameter - arrow 1 - into transmission holder.
Enlarge bore - arrow 2 - to 13 mm diameter.

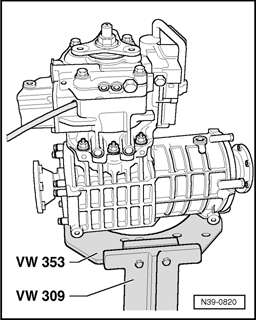

Fig 2: Clamping Rear Final Drive In Assembly Fixture

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Clamp rear final drive in assembly fixture.

Fig 3: Removing Hex Nut For Driveshaft Flange

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Remove hex nut for driveshaft flange.

A - Hex bolts M10 x 20

NOTE:

When loosening hex nut, counterhold driveshaft flange over tube - C - using transmission holder V.A.G 2004 (2nd technician).

Fig 4: Identifying Three Arm Puller

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Pull off driveshaft flange. If it is difficult to move, use three arm puller Kukko 45-2 - A -
Remove seal using extractor lever VW 681.
