Sealing ring for driveshaft flange on rear final drive, replacing (final drive removed): Notes

WARNING: This page is about a different car, the 2004 Volkswagen R32. However, it is still accessible from the selected car via links, so may be relevant.

Special tools, testers and auxiliary items required

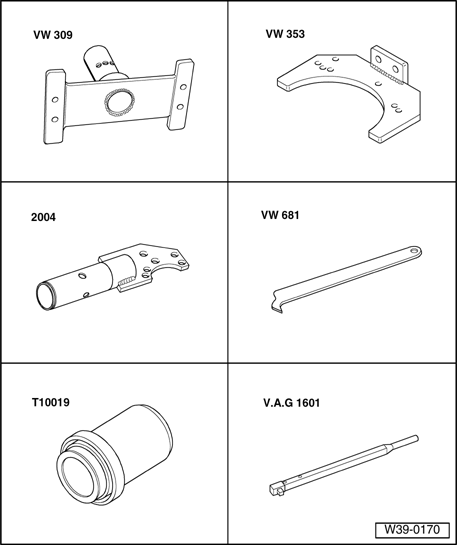

Fig 1: Identifying Special Tools - Sealing Ring For Driveshaft Flange On Rear Final Drive, Replacing (Final Drive Removed)

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Holding plate VW 309
Engine support adapter VW 353
Transmission holder V.A.G 2004
Extractor lever VW 681

Thrust piece T10019
Torque wrench V.A.G 1601
