Different versions of drive pinion housing cover

WARNING: This page is about a different car, the 2004 Volkswagen R32. However, it is still accessible from the selected car via links, so may be relevant.

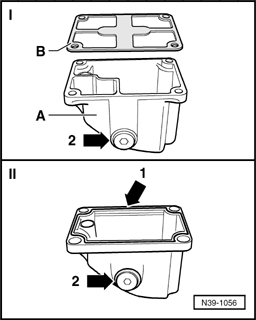

Fig 1: Identifying Versions I & II Of Drive Pinion Housing Cover
GW00001996Courtesy of VOLKSWAGEN UNITED STATES, INC.

I - Aluminum cover - A  - with additional seal - B  -.

II - Plastic cover with vulcanized seal - arrow 1  -

NOTE:
