Bearing for head bevel gear / input shaft, servicing: Assembling

WARNING: This page is about a different car, the 2004 Volkswagen R32. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Pressing Outer Race For Small Tapered Roller Bearing Into Rear Axle Housing Using Special Tools

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Press outer race for small tapered roller bearing into rear axle housing.

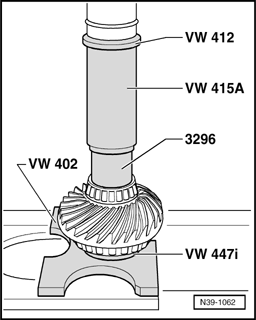

Fig 2: Pressing Large Tapered Roller Bearing Inner Race Onto Head Bevel Gear Using Special Tools

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Press large tapered roller bearing inner race onto head bevel gear.

Fig 3: Pressing Small Tapered Roller Bearing Inner Race Onto Input Shaft Using Special Tools

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Press small tapered roller bearing inner race onto input shaft.

Fig 4: Pressing Outer Race For Large Tapered Roller Bearing Into Cover Using Special Tools

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Press outer race for large tapered roller bearing into cover.
