Shim location

WARNING: This page is about a different car, the 2004 Volkswagen R32. However, it is still accessible from the selected car via links, so may be relevant.

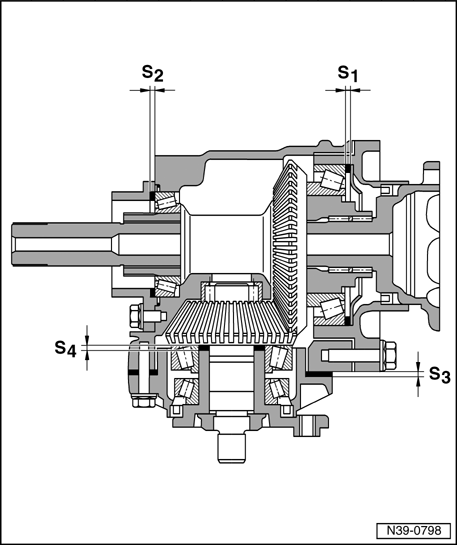

Fig 1: Locating Shims

Courtesy of VOLKSWAGEN UNITED STATES, INC.

S1 - Adjustment shim for friction torque/tapered roller bearing - head bevel gear

S2 - Adjustment shim for friction torque and positioning of head bevel gear

S3 - Adjustment shim for shaft bevel gear

S4 - Adjustment shim for friction torque/tapered roller bearing - shaft bevel gear
