Needle bearing (polygon bearing) for right flanged shaft, replacing: Notes

WARNING: This page is about a different car, the 2004 Volkswagen R32. However, it is still accessible from the selected car via links, so may be relevant.

Special tools, testers and auxiliary items required

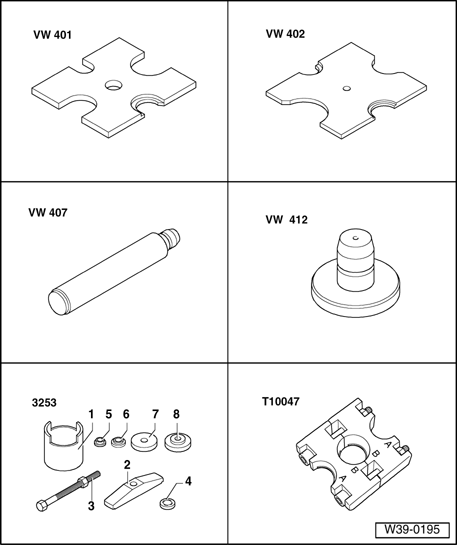

Fig 1: Identifying Special Tools - Needle Bearing (Polygon Bearing) For Right Flanged Shaft, Replacing (1 Of 2)

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Pressure plate VW 401
Pressure plate VW 402
Punch VW 407
Punch VW 412

Assembly tool VAS 3253
Tensioning device T10047

Special tools, testers and auxiliary items required

Fig 2: Identifying Special Tools - Needle Bearing (Polygon Bearing) For Right Flanged Shaft, Replacing (2 Of 2)

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Extractor T10037
Torque wrench V.A.G 1331
Socket V.A.G 1669
