Pressing on grooved ball bearing
WARNING: This page is about a different car, the 2004 Volkswagen R32. However, it is still accessible from the selected car via links, so may be relevant.
- Determine circlip: Determining circlip and install.

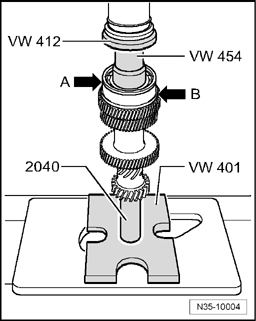

Installed position of grooved ball bearing:
Groove for circlip points upward - arrow A - and shoulder - arrow B - must point toward gear wheel for 5th gear.
