Transmission housing, shift mechanism, input shaft, output shafts (pinion shafts), differential and selector rods, removing and installing: Notes
WARNING: This page is about a different car, the 2004 Volkswagen R32. However, it is still accessible from the selected car via links, so may be relevant.
Special tools, testers and auxiliary items required

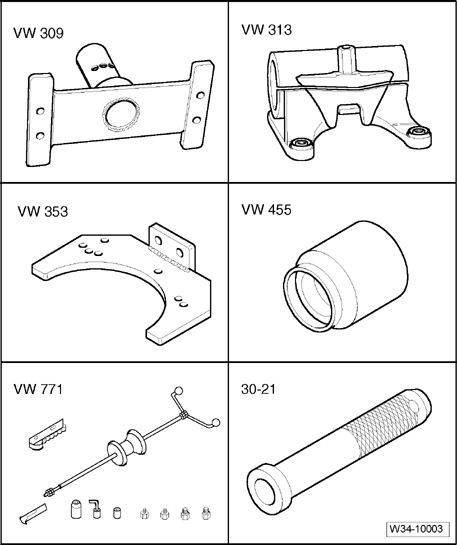

Fig 1: Identifying Special Tools - Transmission Housing, Shift Mechanism, Input Shaft, Output Shafts (Pinion Shafts), Differential And Selector Rods, Removing And Installing (1 Of 2)
- Holding plate VW 309
- Holding fixture VW 313
- Engine support adapter VW 353
- Pressing sleeve VW 455
- Slide hammer VW 771
- Sleeve 30-21
Special tools, testers and auxiliary items required

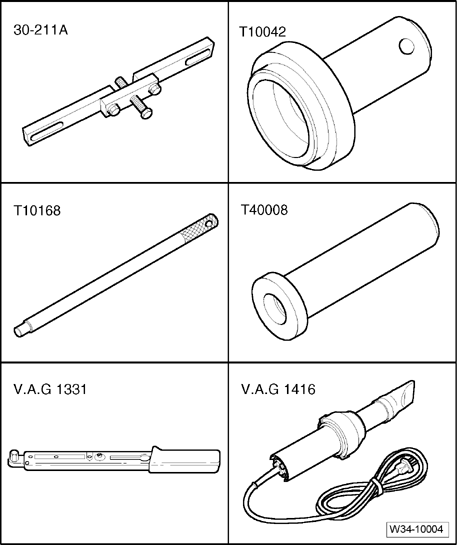

Fig 2: Identifying Special Tools - Transmission Housing, Shift Mechanism, Input Shaft, Output Shafts (Pinion Shafts), Differential And Selector Rods, Removing And Installing (2 Of 2)
- Bracket 30 - 211 A
- Thrust piece T10042
- Drift T10168
- Thrust piece T40008
- Torque wrench V.A.G 1331
- Heat gun V.A.G 1416
Special tools, testers and auxiliary items required
- Internal puller 1 -Kukko 21/01
- Separating device 3 -Kukko 17/0
- Support 4 -Kukko 22/1
