Shift mechanism, adjusting in transmissions with lock elbow (as of transmission manufacture date 190503)

WARNING: This page is about a different car, the 2004 Volkswagen R32. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Selector Shaft Secured With A Lock Elbow

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Selector shaft - A - is secured with a lock elbow - arrow -

Special tools, testers and auxiliary items required

Fig 2: T10027 Pin

Courtesy of VOLKSWAGEN UNITED STATES, INC.

pin T10027

NOTE:

Requirements for a correct shift adjustment are the following points:
Components of shift mechanism and linkage must be in proper working condition.
Shift mechanism must move freely
Transmission, clutch and clutch mechanism must be in proper working condition.
Transmission in neutral

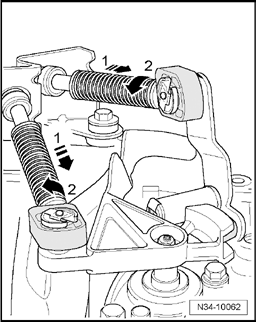

Fig 3: Pulling Securing Mechanism Toward Front Then Lock Toward Left

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Pull securing mechanism on shift cable and on selector cable toward front to stop in direction of - arrow 1 - and then lock toward left in direction of - arrow 2 -.
Press down selector shaft in direction of - arrow 1 -.
While pressing down selector shaft, rotate bracket - A - upward in direction of - arrow 3 - and simultaneously press it in direction of - arrow 2 - until it engages in selector shaft.

Fig 4: Pressing Down Selector Shaft & Rotating Bracket Upward

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Secure selector shaft as follows:

Fig 5: Locating Center Console Pry Areas

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Carefully pry off cover from center console - arrows -.

Now secure shift lever as follows:

Select neutral on shift lever.

Fig 6: Identifying Pin T10027 Through Holes

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Guide pin T10027 through hole - A - into hole - B -.

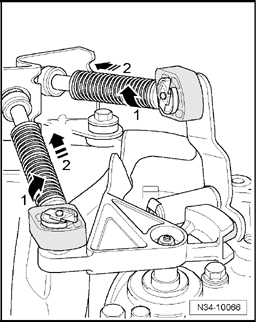

Fig 7: Rotating Securing Mechanism Toward Right & Spring Pressing Securing Mechanism Into Position

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Rotate securing mechanism on shift cable and on selector cable toward right until stop in direction of - arrow 1 -.

The spring presses securing mechanism into initial position in direction of - arrow 2 -.

Fig 8: Lock Bracket Positions

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Rotate lock bracket - A - back into initial position in direction of - arrow 2 -.

While doing this, lock bracket - A - must be pressed in direction of - arrow 1 - out of transmission.

Fig 9: Selector Shaft Movement

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Selector shaft must now be able to move in direction of - arrow -.

Fig 10: Identifying Pin T10027 Through Holes

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Pull pin T10027 out of holes - A - and - B -.
Press boot into cover.
