Oil Seal For Left Flanged Shaft, Replacing
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 Volkswagen Jetta, 2005 Volkswagen GTI, 2004 Volkswagen Jetta, 2004 Volkswagen GTI, and 2003 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.

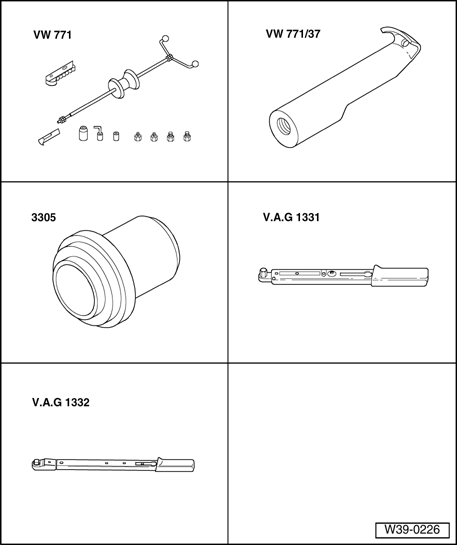

Special tools and equipment
- VW 771 Multi-purpose tool
- VW771/37 Puller hooks
- 3305 Press piece
- VAG 1331 Torque wrench
- VAG 1332 Torque wrench
Removing
- Transmission is mounted in vehicle.
- Remove wheel.
- If installed, remove center and left part of sound insulation tray below engine/transmission.
- Turn steering to left lock.
- Disconnect axle shaft from flanged shaft.
- Mark installation position of bolts -1-.
- Remove bolts -1-.
- Tie-up axle shaft as high as possible. Do not damage paint on axle shaft.
- Remove flanged shaft securing bolts by threading two bolts into flange and counterholding flanged shaft using a lever.
- Place container under transmission.
- Remove flanged shaft with spring.
- Pull flanged shaft oil seal out using VW 771 and VW 771/37.
Installing
- Drive new seal in onto stop. Do not tilt seal when doing this.
- Fill space between sealing lip and dust lip with grease G 052 128 A1.
- Insert flanged shaft.
- Secure flanged shaft with countersunk bolt and tighten to specified torque. Refer to Differential, disassembling and assembling item Differential, disassembling and assembling .
- Connect ball joint to control arm using new bolts onto old impression marks.
Refer to 40 FRONT SUSPENSION
- Bolt left axle shaft to flanged shaft.
Refer to 40 FRONT SUSPENSION
- Install wheel.
Refer to 40 FRONT SUSPENSION
- Check transmission oil. Refer to Transmission gear oil, checking .
- Install sound insulation tray.
