Output Shaft For 5TH, 6TH And Reverse Gear, Disassembling And Assembling: Notes
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 Volkswagen Jetta, 2005 Volkswagen GTI, 2004 Volkswagen Jetta, 2004 Volkswagen GTI, and 2003 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Identifying Special Tools - Output Shaft For 5th, 6th And Reverse Gear, Disassembling And Assembling (1 Of 6)
Special tools and equipment
- VW 401 Thrust plate
- VW 402 Thrust plate
- VW 407 Press tool
- VW 408 A Press tool
- VW 412 Press tool
- VW 415 A Tube
Fig 2: Identifying Special Tools - Output Shaft For 5th, 6th And Reverse Gear, Disassembling And Assembling (2 Of 6)
Special tools and equipment
- VW 309 Holding plate
- VW 353 Transmission support
- VW 433 Press piece
- VW 454 Press piece
- VW 457 Support rail
- VW 801 Holding plate
Fig 3: Identifying Special Tools - Output Shaft For 5th, 6th And Reverse Gear, Disassembling And Assembling (3 Of 6)
Special tools and equipment
- VW 431 Press piece
- VW 455 Fitting sleeve
- VW 510 Press piece
- VW 516 Tube
- VW 519 Tube
- 30-11 Thrust plate
Fig 4: Identifying Special Tools - Output Shaft For 5th, 6th And Reverse Gear, Disassembling And Assembling (4 Of 6)
Special tools and equipment
- 40-105 Thrust plate
- 40-20 Press tool
- 2050 Thrust piece
- 3296 Tube
- VAG 1582 Tapered roller bearing puller
- VAG 1582/4 Grip
Special tools and equipment
Fig 5: Identifying Special Tools - Output Shaft For 5th, 6th And Reverse Gear, Disassembling And Assembling (5 Of 6)
- V.A.G 1582/7 Grip
Fig 6: Identifying Special Tools - Output Shaft For 5th, 6th And Reverse Gear, Disassembling And Assembling (6 Of 6)
- 1 - Kukko 21/7 Internal puller
- 3 - Kukko 17/2 Separating device
- 4 - Kukko 22/2 Counter support
NOTE:
- When installing new gears or a new output shaft consult technical data. Refer to Code letters, application, ratios, capacities .
- If the output shaft or tapered roller bearings have been replaced then perform output shaft adjustment. Refer to Output shaft for 5th, 6th and reverse gear, adjusting .

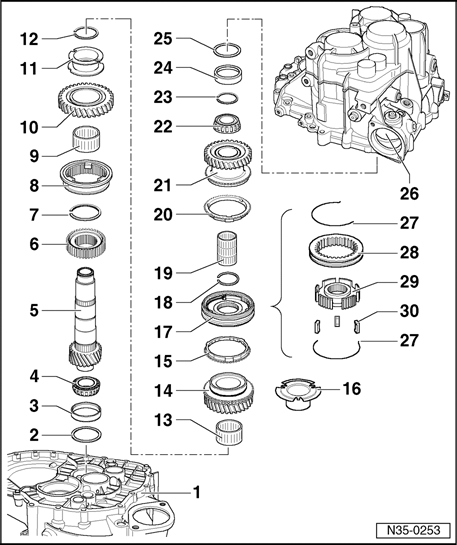

1 - Clutch housing
2 - Shim
- Always 0.65 mm thick
3 - Outer race/tapered roller bearing
4 - Tapered roller bearing inner race
5 - Output shaft
- For 5th, 6th and reverse gear
- Adjusting. Refer to Output shaft for 5th, 6th and reverse gear, adjusting
6 - Reverse gear synchro-hub
7 - Securing clip
8 - Reverse gear locking collar
- Securing clip
9 - Needle roller bearing
- For reverse gear
10 - Reverse sliding gear
11 - Sleeve
- Press off with reverse gear. See Figure
- Installed position: wide shoulder of sleeve faces reverse gear
- Pressing on. See Figure
12 - Securing clip
13 - Needle roller bearing
- For 6th gear
- Not in 5-speed manual transmissions
14 - 6th gear
- Not in 5-speed manual transmissions
15 - 6th gear synchro-ring
- Not in 5-speed manual transmissions
- Checking for wear. See Figure
16 - Spacer sleeve
- For 5-speed manual transmission
- Pull off together with 5th gear locking collar/synchro-hub after removing securing clip (item Output shaft for 5th, 6th and reverse gear, disassembling and assembling ). See Figure
- Position toward 5th gear locking collar/synchro-hub. See Figure
- Press on together with 5th gear locking collar/synchro-hub. See Figure
17 - 5th and 6th gear locking collar with synchro-hub
- After removing securing clip, press off together with 6th gear (item Output shaft for 5th, 6th and reverse gear, disassembling and assembling ). See Figure or for 5-speed manual transmission, with spacer sleeve. See Figure
- Disassembling. See Figure
- Assembling locking collar/synchro hub. See Figure and Figure
- Pressing off in 6-speed manual transmission. See Figure
- Pressing off in 5-speed manual transmission. See Figure
18 - Securing clip
19 - Needle roller bearing
- For 5th gear
20 - 5th gear synchro-ring
- Check for wear. See Figure
21 - Selector gear for 5th gear
22 - Tapered roller bearing inner race
23 - Securing clip
- Redetermine if tapered roller bearing (item Output shaft for 5th, 6th and reverse gear, disassembling and assembling ) or output shaft (item Output shaft for 5th, 6th and reverse gear, disassembling and assembling ) are replaced. See Figure
24 - Outer race/tapered roller bearing
25 - Shim
- Determining thickness. Refer to Output shaft for 5th, 6th and reverse gear, adjusting
26 - Transmission housing
27 - Spring
- Installed position. See Figure
28 - Locking collar
29 - Synchro-hub
30 - Locking pieces (Qty. 3)
- Installed position. See Figure
