Cylinder head, removal and installation overview: Notes
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2002 Volkswagen Jetta, 2002 Volkswagen GTI, 2001 Volkswagen Jetta, 2001 Volkswagen GTI, and 2000 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.
Checking compression, refer to Compression pressure, checking .
NOTE:
- Use only the assembly tool T10029 for connecting and disconnecting the spark plug connector.
- When installing a replacement cylinder head with installed camshafts, the contact areas between the valve lifter and the cam track must be oiled after installing the head.
- The supplied plastic open valve protectors should only be removed immediately before mounting the cylinder head.
- When replacing the cylinder head, all of the coolant must be replaced.

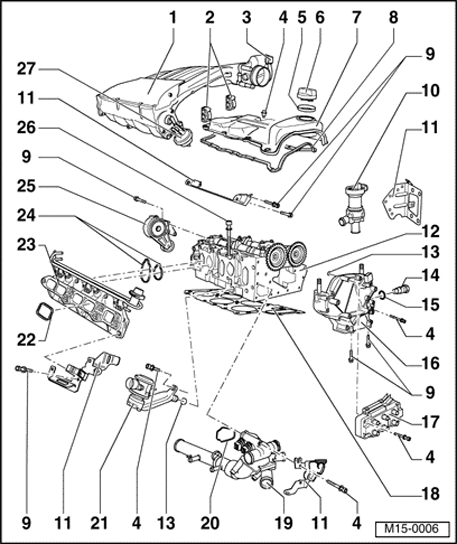

1 - Intake manifold upper
- Removing and installing, refer to Cylinder head cover, removing and installing
- First, tighten at lower half of manifold, then tighten at both supports
- Disassembling and assembling: Refer to 24 MULTIPORT FUEL INJECTION (MFI)
2 - Retainer
- For fuel lines
3 - Throttle valve control module J338
- May not be opened
- With throttle drive (for Electronic Power Control (EPC)) G186
- With throttle drive angle sensor 1 (for Electronic Power Control (EPC)) G187
- With throttle drive angle sensor 2 (for Electronic Power Control (EPC)) G188
- Heated by coolant
- Removing and installing: Refer to 24 MULTIPORT FUEL INJECTION (MFI)
4 - 10 Nm
5 - Profile gasket
6 - Gasket cover
- Replace gasket if damaged
7 - Cylinder head cover
- Removing and installing, refer to Cylinder head cover, removing and installing
- Replace if damaged or leaking
- Coat with D 454 300 A3 before placing; cover cylinder head and half moon shaped recess
8 - Gasket for cylinder head cover
- Replace if damaged
- Note installation position
9 - 25 Nm
10 - After-Run Coolant pump V51
- Checking, refer to After-Run Coolant pump V51 , checking
11 - Retainer
12 - Cylinder head
- Check for distortion Cylinder head, removal and installation overview
- Removing and installing, refer to Cylinder head, removing and installing
- After replacing, replace all coolant
13 - O-Ring
- Always replace
14 - Chain tensioner, 40 Nm
- For camshaft roller chain
- Turn engine only with installed chain tensioner
15 - Seal ring
- Always replace
16 - Cover
- Can be removed and installed with cylinder head installed
- Coat sealing surfaces with AMV 188 001 02
- If only cover has been removed, prepare cylinder head gasket for installation Preparing cylinder head gasket for installation under Cylinder head, removal and installation overview
17 - Ignition coil N152
- Checking: Refer to 01 ON BOARD DIAGNOSTIC (OBD)
18 - Cylinder head gasket
- Always replace
- After replacing, replace all coolant
- Metal gasket
19 - Thermostat housing
- Disassembling and assembling, refer to Thermostat housing, disassembling and assembling
20 - Seal
- Always replace
21 - Combination valve
- Checking, refer to Combination valve, checking
- Removing and installing, refer to Combination valve, removing and installing
22 - Seal - upper intake manifold
- Replace if damaged
23 - Intake manifold - lower
24 - Seal - lower intake manifold
- Replace if damaged
25 - Tensioner
- For V-ribbed drive belts
26 - Cylinder head bolt
- Always replace
- Note assembly instructions and order when loosening or tightening, refer to Cylinder head, removing and installing
27 - Vacuum actuator
- For switching of intake manifold runner
