Crankshaft seal (vibration damper side), replacing

WARNING: This page is about a different car, the 2004 Volkswagen R32. However, it is still accessible from the selected car via links, so may be relevant.

Special tools, testers and auxiliary items required

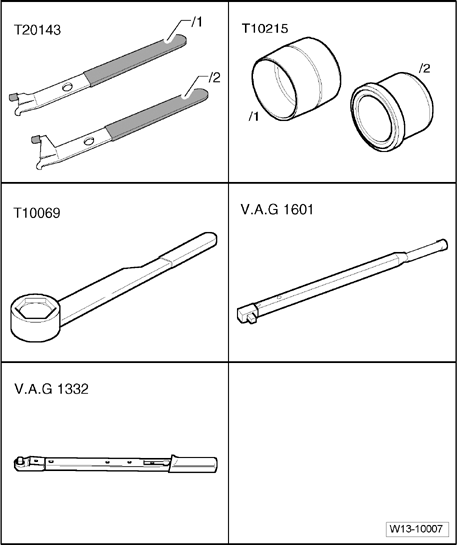

Fig 1: Identifying Special Tools - Crankshaft Seal (Vibration Damper Side), Replacing

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Extractor hook T20143/1
Assembly tool T10215
Counter-holder tool T10069
Torque wrench V.A.G 1601

Torque wrench V.A.G 1332

Removing

Remove ribbed belt, refer to Ribbed belt, removing and installing under Ribbed belt, removing and installing .

Fig 2: Loosening/Tightening Securing Bolt, Using Counter-Holder T10069 To Hold Vibration Damper

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Remove vibration damper. To do this, lock vibration damper with counter-holder T10069.

Fig 3: Locking Vibration Damper With Counter-Holder T10069

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Place removal hook T20143/1 behind sealing lip of oil seal as shown in the illustration.
Support pulling hook T20143/1 on the sealing flange and pry out the oil seal in direction of - arrow -.

Installing

Fig 4: Identifying A PTFE Seal (Teflon) & Inner Coil Spring Type Seal

Courtesy of VOLKSWAGEN UNITED STATES, INC.

NOTE:

A PTFE seal (Teflon) - 2 - is gradually being introduced instead of the inner coil spring type seal - 1 -. This has a wider sealing lip. PTFE sealing rings are installed free of oil and grease. If a PTFE sealing ring was installed, only this type of sealing ring may be used as a replacement part!

Before installing, remove oil remains from end of crankshaft with a clean cloth.

Fig 5: Identifying Guide Sleeve T10215/1, Oil Seal, Thrust Sleeve T10215/2 And Old Vibration Damper Securing Bolt

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Install guide sleeve T10215/1 - 1 - onto front of crankshaft journal.
Carefully slide oil seal - 2 - onto guide sleeve as far as possible.
Press in oil seal until stop using thrust sleeve T10215/2 - 3 -. To do this use an old vibration damper securing bolt - 4 -.

NOTE:

Vibration damper securing bolt must be replaced.
Tighten securing bolt with torque wrench V.A.G 1601.

Fig 6: Loosening/Tightening Securing Bolt, Using Counter-Holder T10069 To Hold Vibration Damper

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Install vibration damper and lock with counterholder T10069.
Fasten new bolt to 100 Nm plus additional ¹ / ₄ (90 ° ) turn.
Install ribbed belt, refer to Ribbed belt, removing and installing under Ribbed belt, removing and installing .
