Placing inner and outer plates on inner plate carrier and installing support ring

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 1995 Volkswagen Jetta III, 1995 Volkswagen Golf III, 1995 Volkswagen Cabrio, 1994 Volkswagen Jetta III, and 1994 Volkswagen Golf III. However, it is still accessible from the selected car via links, so may be relevant.

Insert thrust plate and inner and outer plates, then install supporting ring (-arrow-).
NOTE: An inner and an outer plate must be placed in clutch housing before inserting inner plate carrier.

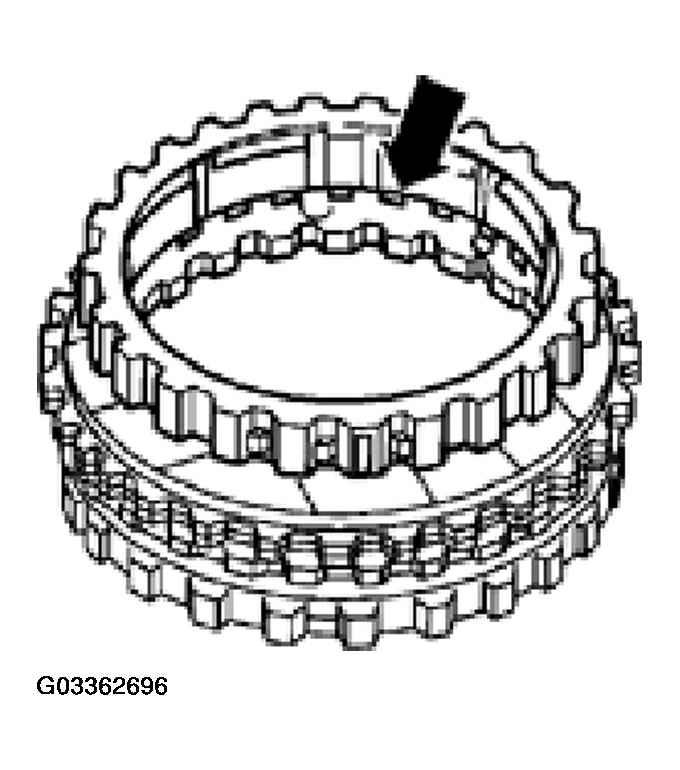

Fig 1: Placing Inner And Outer Plates On Inner Plate Carrier: 1st To 3rd Gear Clutch With Turbine Shaft (Transmissions Up To 12.92)

Courtesy of VOLKSWAGEN OF AMERICA, INC.
