O-rings for Cold Start Accelerator (CSA) lever and cover, replacing
WARNING: This page is about a different car, the 1996 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
The numbered items in the procedure that follows refer to Figure
in DIESEL INJECTION PUMP, SERVICING
.
- Remove injection pump.

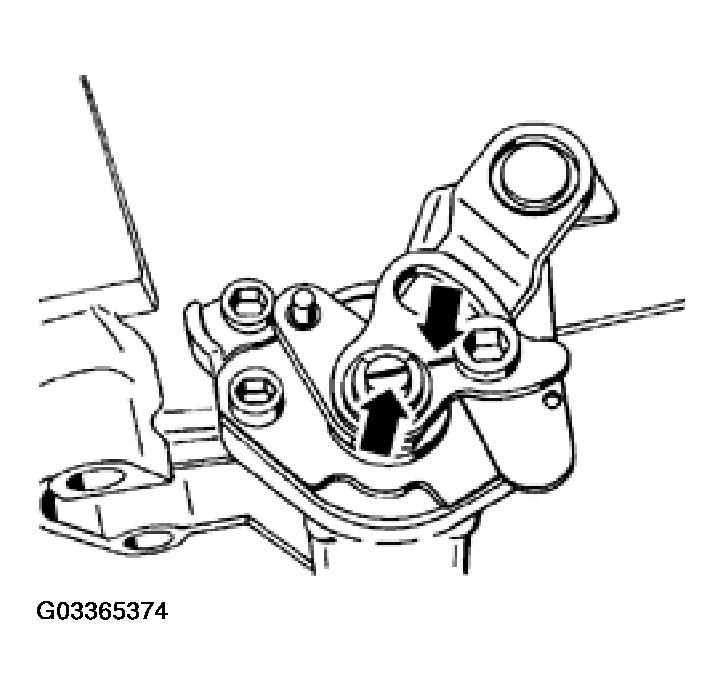

- Mark installed position of CSA lever relative to shaft (-arrows-).
- Remove circlip and remove CSA lever.
- Loosen cover screws -35- and remove cover -36-. See Figure .
- Replace O-rings -34- and -37- for cover and lever. See Figure .
- Install retainer -32- for CSA lever.
- Install cover.
- Install CSA lever in position marked before removal, and secure.
- Install injection pump.
