Crankshaft oil seal (pulley end), replacing: Removing

WARNING: This page is about a different car, the 1999 Volkswagen Jetta, 1998 Volkswagen Jetta, 1997 Volkswagen Jetta, 1996 Volkswagen Passat, and 1996 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.

Remove ribbed belt RIBBED BELT, REMOVING AND INSTALLING .
Remove toothed belt.
- Engine code 1Z, see TOOTHED BELT, REMOVING AND INSTALLING (ENGINE CODE AAZ 09.94 and up)
- Engine code AHU TOOTHED BELT, REMOVING AND INSTALLING (ENGINE CODES AAZ UP TO 10.94, 1Z, AHU)
Remove crankshaft sprocket by counter-holding sprocket using 3099.
To guide seal puller, screw bolt from 3083 arbor into crankshaft as far as it will go.

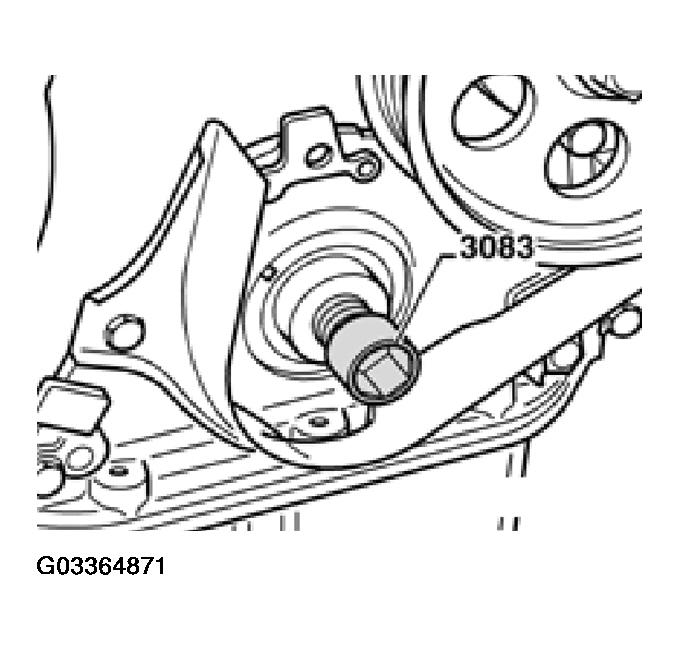

Fig 1: Screw Bolt From 3083 Arbor Into Crankshaft As Far As It Will Go
Unscrew inner part of 2085 seal puller two turns (approx. 3 mm) out of outer part, then lock using knurled screw.
Lubricate threaded head of oil seal puller, place it in position and while exerting firm pressure, screw into oil seal as far as possible.
Loosen knurled screw and rotate inner section against crankshaft until oil seal is pulled out.

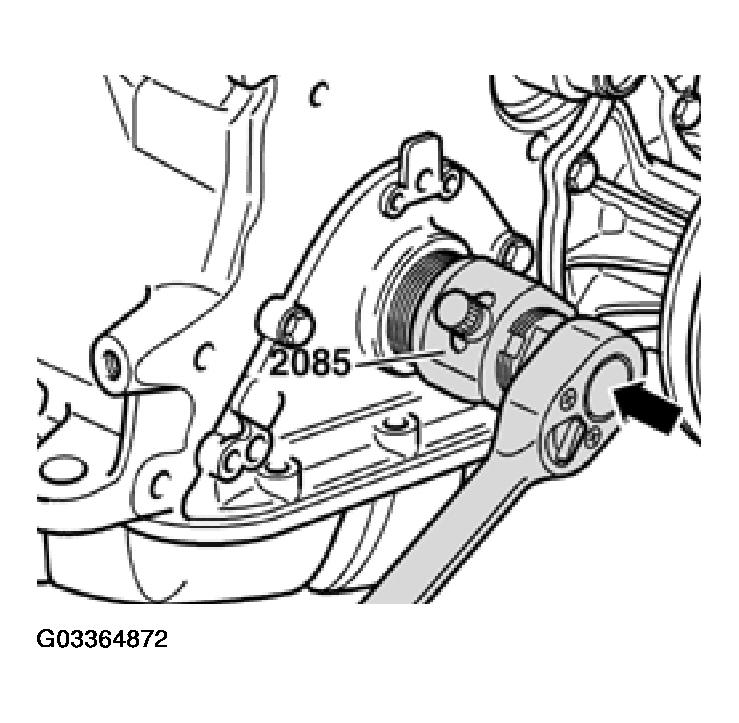

Fig 2: Loosening Knurled Screw To Remove Crankshaft Front Oil Seal
