Door, rear lid and sunroof switches overview
WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
Before working on the electrical system:
- Obtain radio anti-theft code.
- Ignition OFF !
- Disconnect battery Ground (GND) strap.
NOTE:
After reconnecting battery:
- Activate vehicle equipment such as radio, clock and power windows as per Repair Manual and/or Owner's Manual.
- On vehicles equipped with OBD II, activate readiness code. See READINESS CODE, CREATING in appropriate ON BOARD DIAGNOSTIC (OBD) .
NOTE:

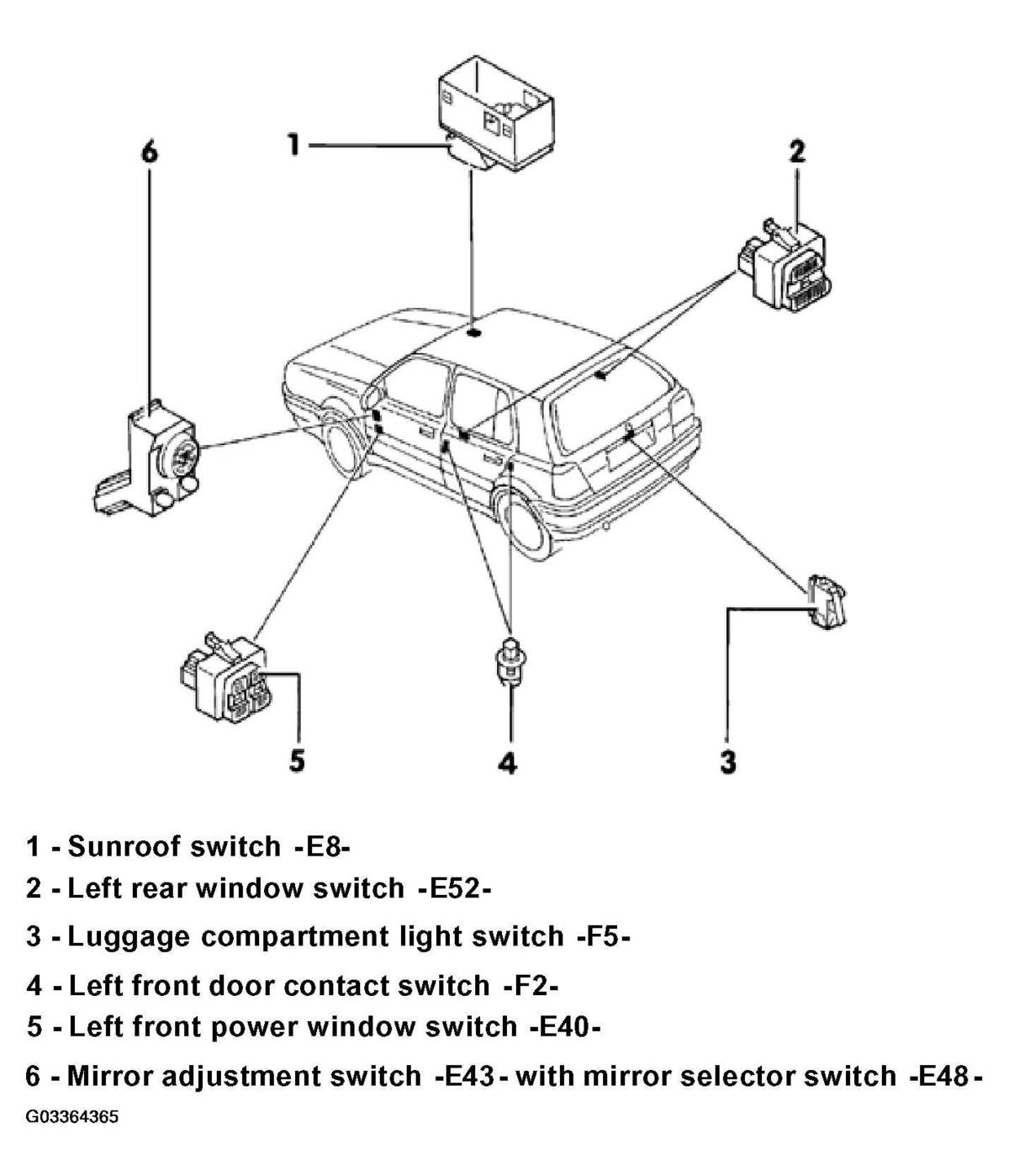

The following list refers to items in Fig 1.
- - Sunroof switch -E8-
- Removing/installing, refer to Sunroof switch -E8-, removing and installing .
- - Left rear window switch -E52-
- Jetta only
- Installation identical for left front window switch -E40-, right rear window switch -E54-, right front window switch -E41-
- Removing/installing, refer to Left front power window switch -E40- (Jetta only), removing and installing
- - Luggage compartment light switch -F5-
- Removing/installing, refer to Luggage compartment light switch -F5-, removing and installing
- - Left front door contact switch -F2-
- Installation identical for left rear door contact switch -F10-, right front door contact switch -F3-, and right rear door contact switch -F11 -
- Removing/installing, refer to Left front door contact switch -F2-, removing and installing
- - Left front power window switch -E40-
- Jetta only
- Removing/installing, refer to Left front power window switch -E40- (Jetta only), removing and installing
- - Mirror adjustment switch -E43 - with mirror selector switch -E48 -
- Removing/installing, refer to Mirror adjustment switch -E43- with mirror selector switch -E48-, removing and installing
