Bulbs, replacing

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.

Bulbs -3- are plugged into bulb holder socket -4-.

NOTE: The following list refers to items in Fig 1.
  1. Lamp housing
  2. Reflector
  3. Bulb 12V 2.3W
  4. Bulb holder

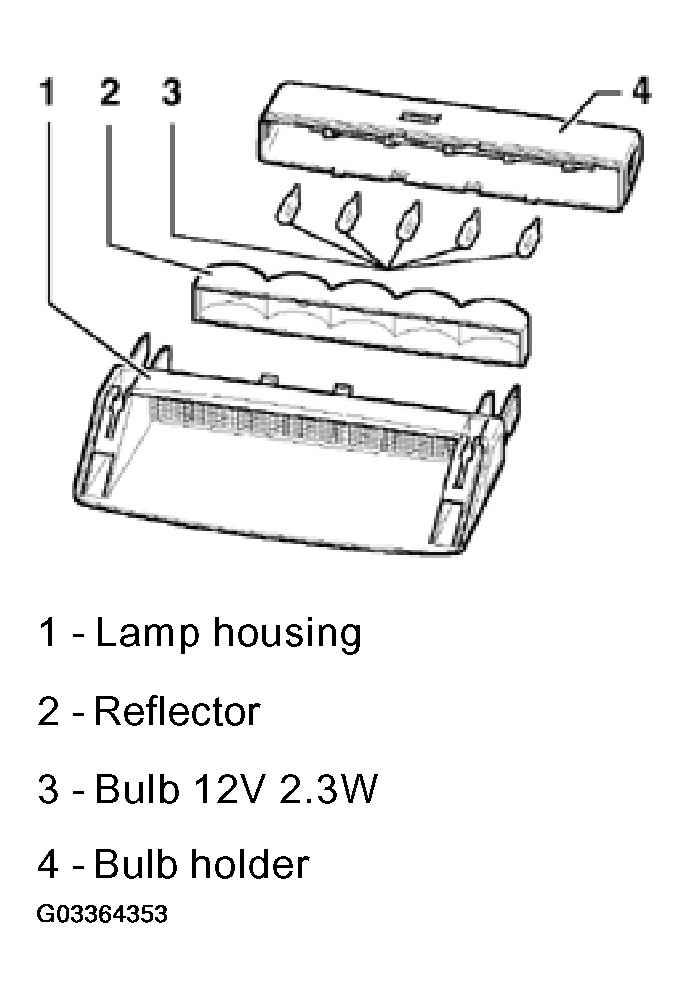

Fig 1: Removing & Installing Bulbs - High Mount Brake Light (Jetta)
G03364353Courtesy of VOLKSWAGEN OF AMERICA, INC.
