Bulbs, replacing

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.

Bulbs -3- are plugged into sockets in bulb holder -4-.

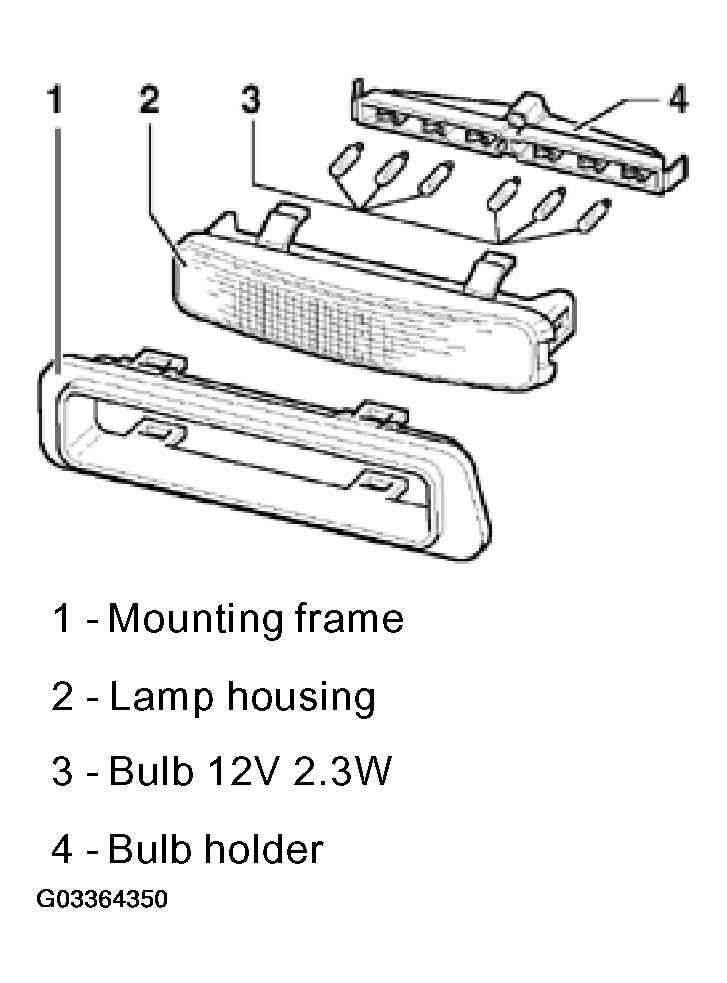

Fig 1: Removing & Installing Bulbs On High Mount Brake Light (Cabrio to 10.98)
G03364350Courtesy of VOLKSWAGEN OF AMERICA, INC.
  1. Mounting frame
  2. Lamp housing
  3. Bulb 12V 2.3W
  4. Bulb holder
