Headlight and turn signal bulbs (Cabrio from 10.98), replacing: Notes

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Do not touch bulb glass when installing a new bulb. Fingers leave traces of grease on the glass, which evaporate when bulb is switched on, causing glass to cloud over.

Release spring clip -arrow- and remove sealing cover.

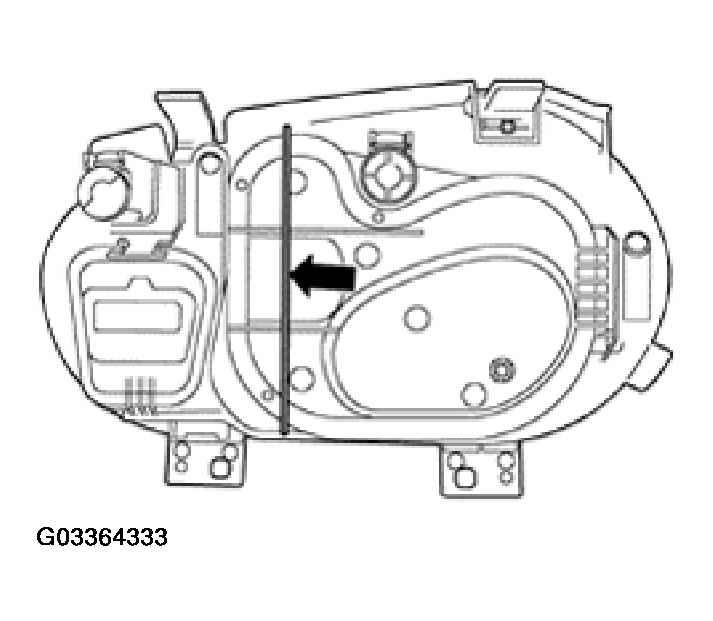

Fig 1: Releasing Spring Clip From Sealing Cover (Cabrio From 10.98)

Courtesy of VOLKSWAGEN OF AMERICA, INC.
