Low beam bulb, replacing
WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.

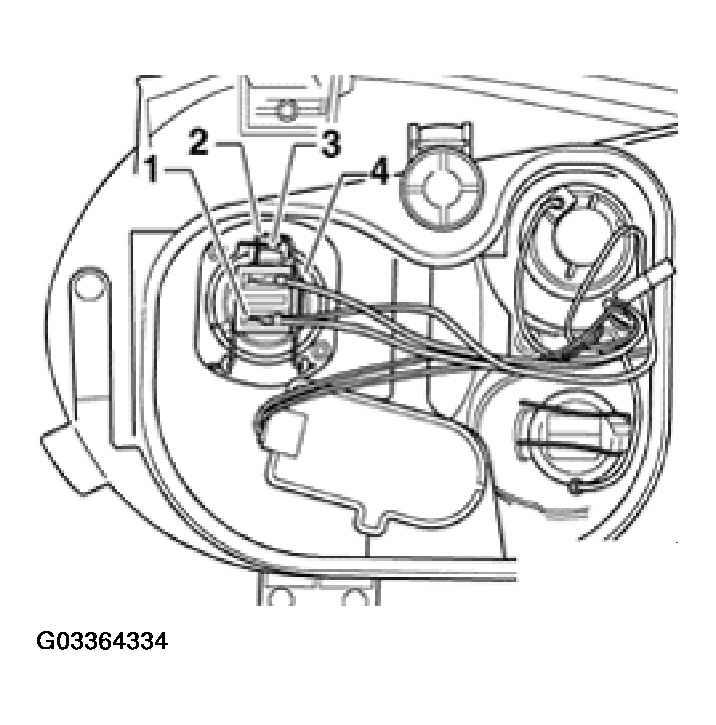

- Disconnect harness connector -1- at lamp.
- Disengage spring clip -2- by pushing on locking lugs -3-.
- Pull bulb -4- out of reflector.
Do not touch glass during installation.
- Insert new bulb so that lugs on laminated plate align with grooves in reflector.
- Attach harness connector -1-.
- Attach sealing cap.
- Always check headlight setting after installing new bulb.
