Vehicles with airbag
WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 1999 Volkswagen Jetta, 1999 Volkswagen Golf, 1999 Volkswagen GTI, 1998 Volkswagen Jetta, and 1998 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

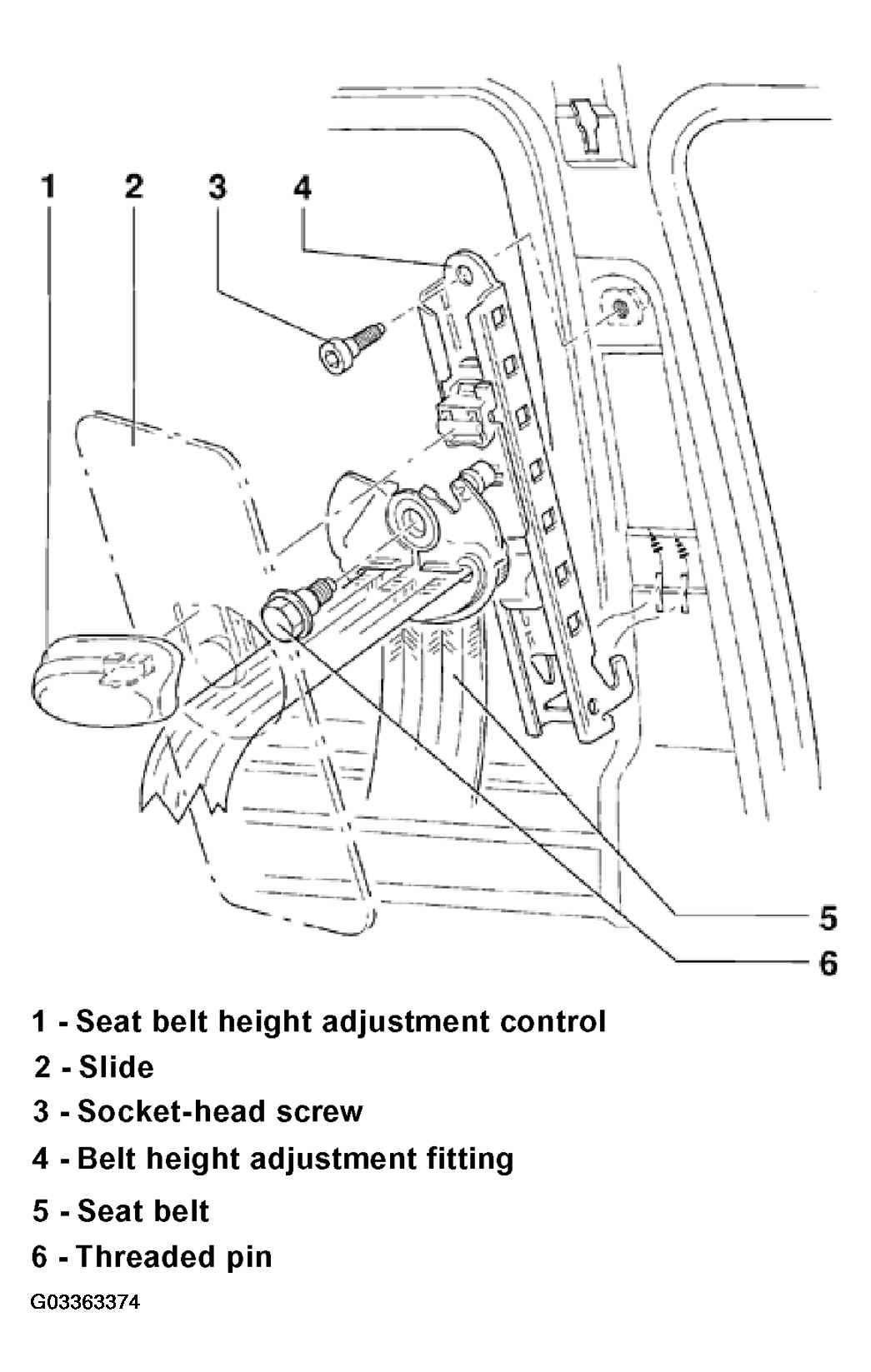

The following list refers to Fig 1
.
- - Seat belt height adjustment control
- Pull out
- - Slide
- Part of B-pillar or C-pillar
- - Socket-head screw
- 23 N.m (17 ft lb)
- - Belt height adjustment fitting
- Front: To remove, upper B-pillar trim must be removed first
- Rear: To remove, side parcel shelf support and C-pillar trim must be removed first
- - Seat belt
- - Threaded pin
- 40 N.m (30 ft lb)
