Removing and installing belt reel

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 1999 Volkswagen Jetta, 1999 Volkswagen Golf, 1999 Volkswagen GTI, 1998 Volkswagen Jetta, and 1998 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.

To remove, the side panel trim from panel, side liner for hat rack and C-pillar trim must be removed.

  1. - Locating lug

    Serves to position the belt reel

  2. - Hex head bolt

    Tightening torque: 40 N.m (30 ft lb)

  3. - Belt reel

    Upper part hooked into side panel

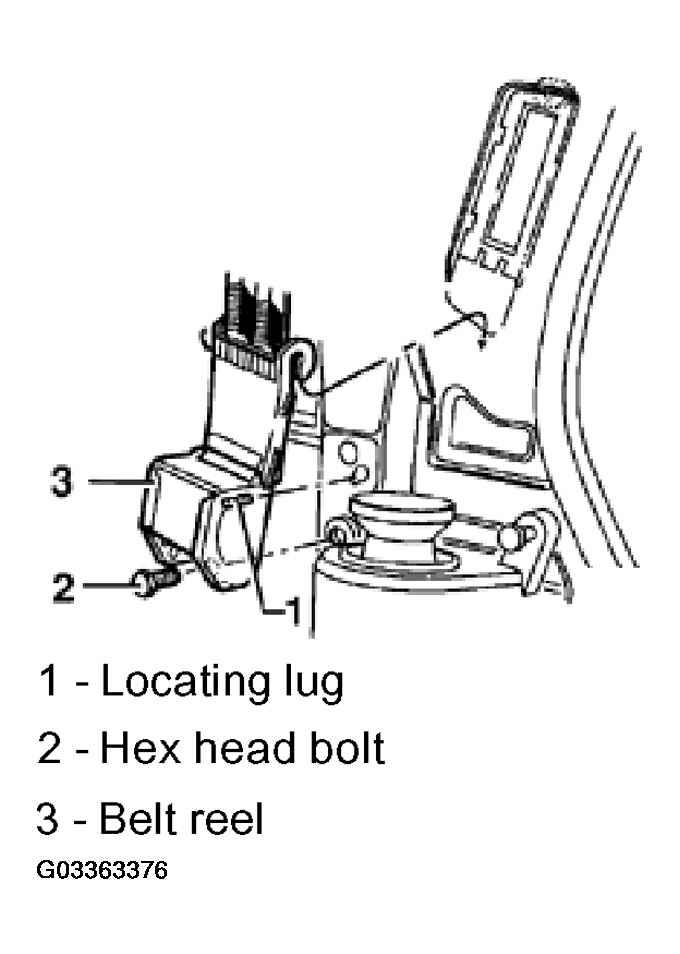

    4. Fig 1: Identifying Rear Belt Reel
    G03363376
