Removing and installing lower mounting point
WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 1999 Volkswagen Jetta, 1999 Volkswagen Golf, 1999 Volkswagen GTI, 1998 Volkswagen Jetta, and 1998 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.

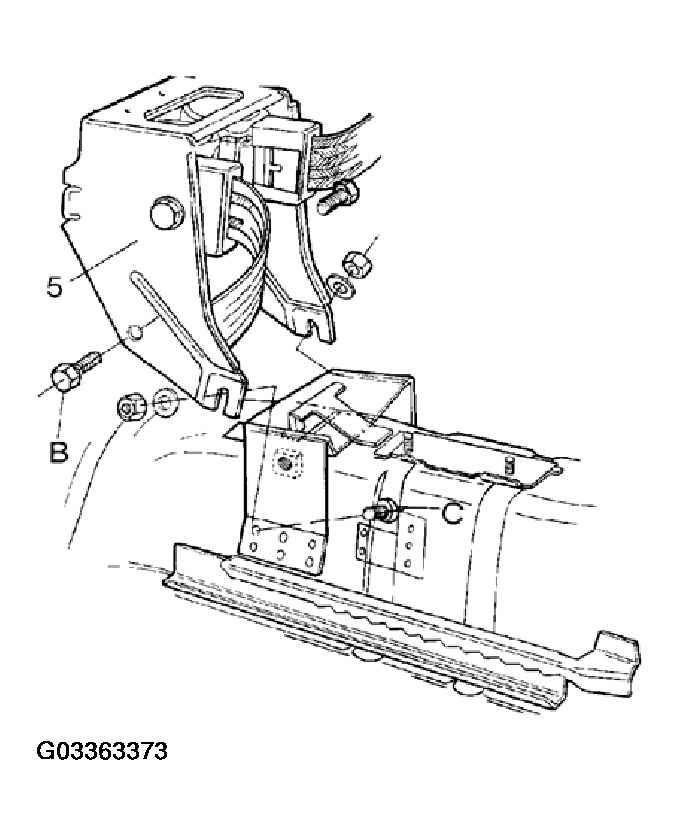

To remove the lower mounting point -5-, first remove the front seat: refer to SEATS, FRONT .
- Remove hex bolts -B-.
- Remove hex bolts -C-.
- Remove lower mounting point.
- Install in reverse order of removal.
Tightening torques:
- B: 40 N.m (30 ft lb)
- C: 19 N.m (14 ft lb)
